6. SETTING B-62994EN/02
-178-

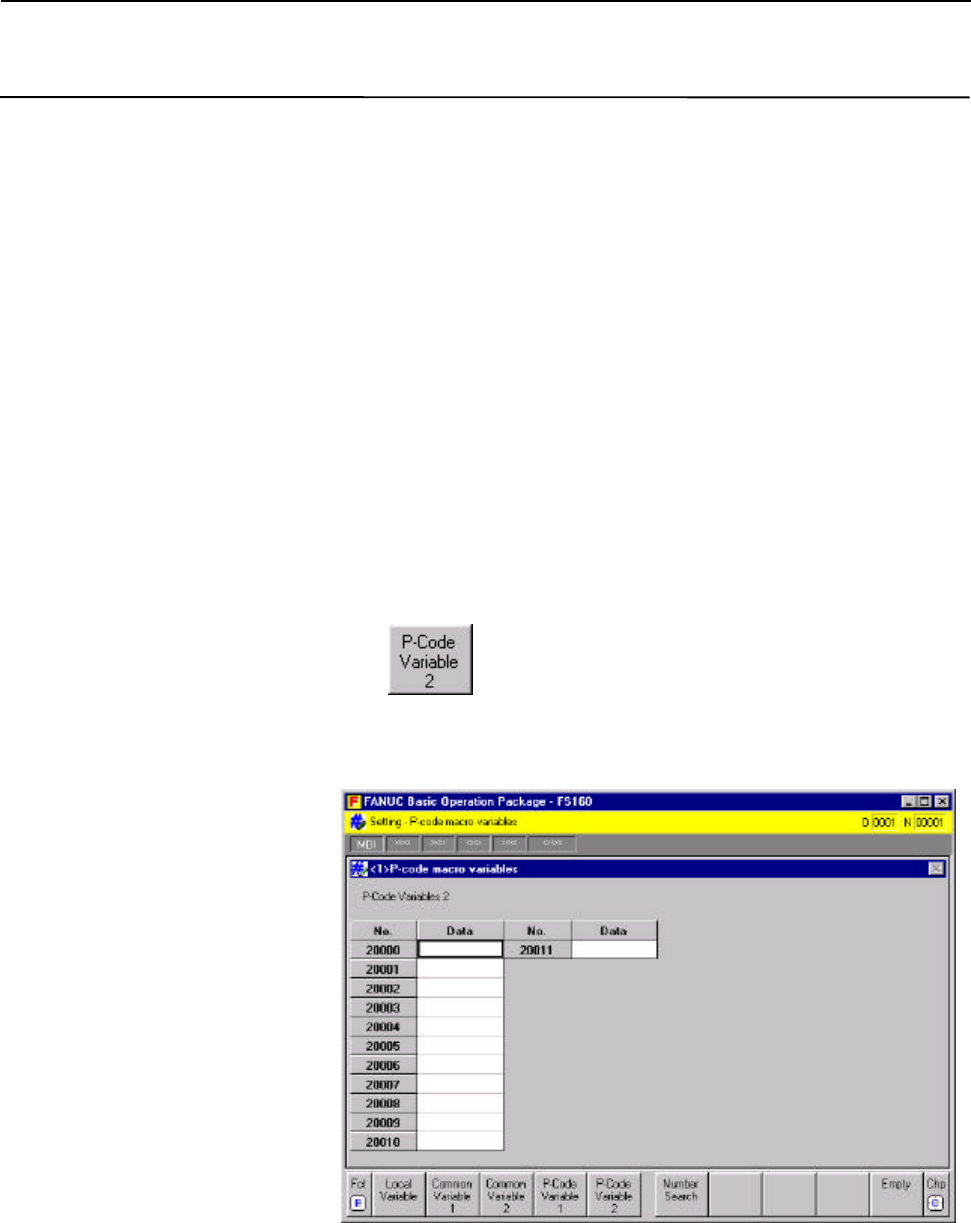

6.9.5 P-code variable 2 settings
P-code macro P-code variables 2 can be set.
The variable numbers range as indicated below.
FS15
Variable numbers #40000 or greater can be used. The range of variable
numbers that can actually be used varies with the CNC option and model.
FS16/18/21, Power Mate i-D/H, NC Board
Variable numbers #20000 or greater can be used. The range of variable
numbers that can actually be used varies with the CNC option and model.
The variables cannot be used with FS21/210-MB/TB or an NC Board.
Procedure
1. When the [P-code macro variables] screen is currently not displayed,
follow the procedure described in Section 6.9, "P-Code Macro Variable
Settings" to display the [P-code macro variables] screen.
2. When P-code variables 2 are currently not displayed, press the
soft key.
P-code variables 2 are displayed on the [P-code macro variables]
screen.
3. Choose the desired variable and input an appropriate value.
