6. SETTING B-62994EN/02

-190-

Explanation

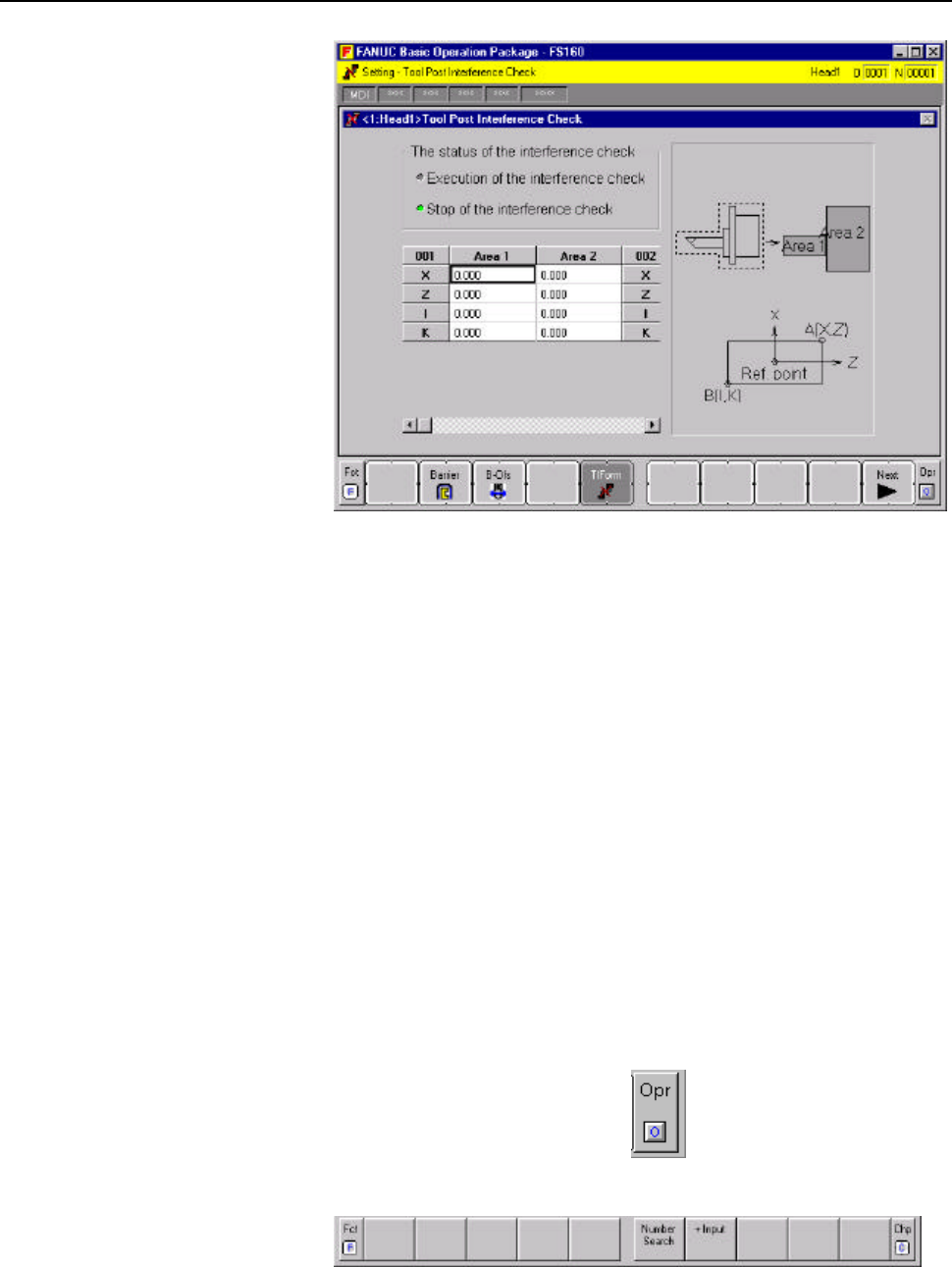

On this screen, set contact-forbidden area data to perform tool post

interference checks.

l Displayed settings

• Interference check status

When all the requirements for tool post interference checks are

satisfied, the "Execution of the interference check" button lights;

otherwise, the "Stop of the interference check" button lights.

• Contact-forbidden area data

Set contact-forbidden areas based on the tool post contour, such as

areas 1 and 2 on the right on the screen.

Use the arrow keys or mouse to select a desired item. Then, input a

value and press the [Enter] key.

For a contact-forbidden area, the following must be satisfied:

X > I, Z > K

l Operation soft keys

Press the operation selection key .

The operation soft keys appear.
