6.6.1 Adding a tool to a tool group included in the tool life
management data
A tool can be added to a tool group included in the tool life management data.
Procedure

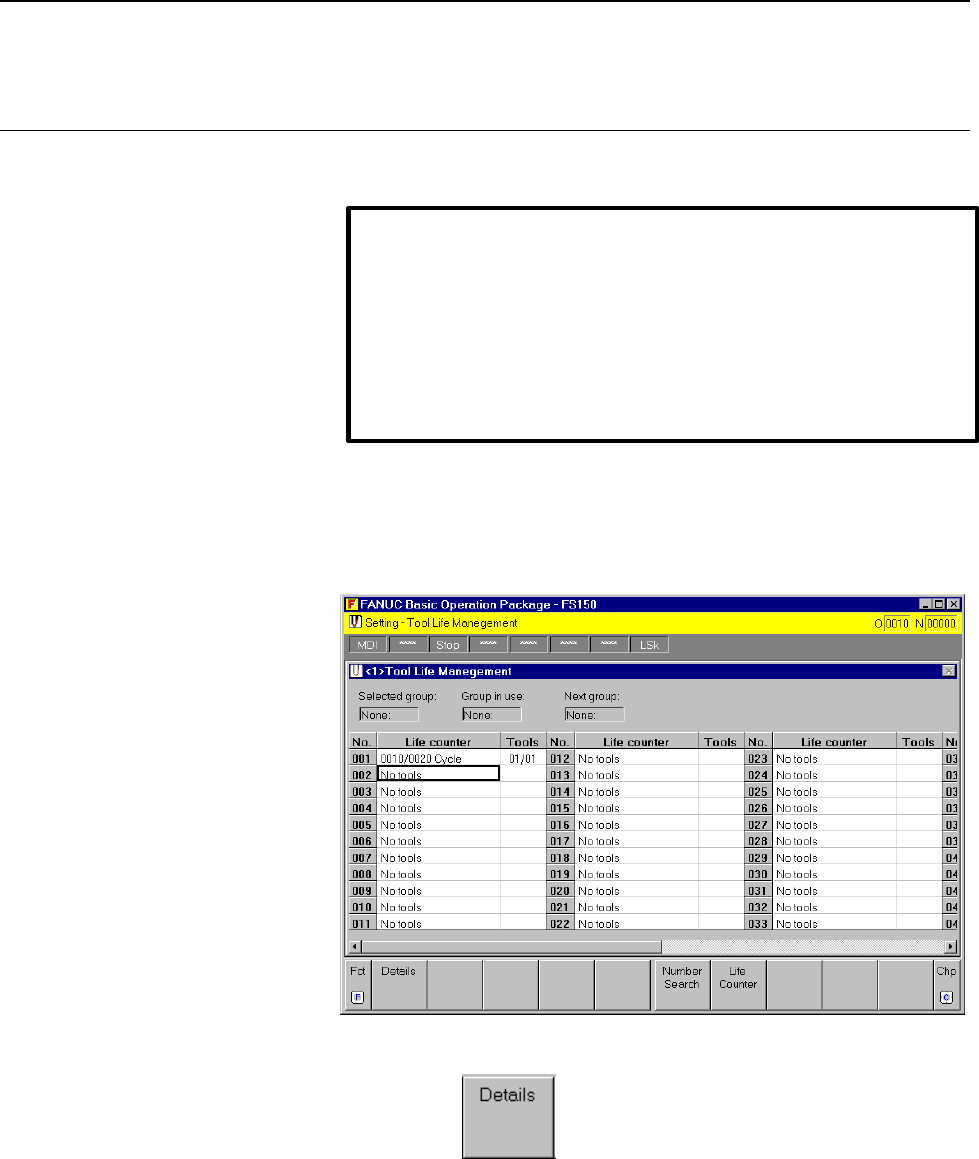

1. When the [Tool Life Management] screen is currently not displayed,
follow the procedure described in Section 6.6, "Tool Life Management
Data Settings" to display the [Tool Life Management] screen.
2. Choose the desired tool group.
3. Press the soft key.
The details of the tool group appear.
NOTE
The function for adding a tool is provided only for machining center
systems.
In lathe systems, a program for registering tool information is used to
add a tool to the tool life management data. For an explanation of the
operation and details of the tool registration program, refer to the
operator's manual for the CNC being used.
