2. BASIC KNOWLEDGE B-62994EN/02

-10-

2.1 Starting and Terminating Basic Operation Package 1

This section describes how to start and terminate Basic Operation Package 1

and provides notes on starting it.

2.1.1 Starting Basic Operation Package 1

This section describes how to start Basic Operation Package 1 and provides

notes on starting it.

Procedure

Windows 95/Windows 98

1. Click the [Start] button.

2. Select [Program].

3. Select Basic Operation Package 1.

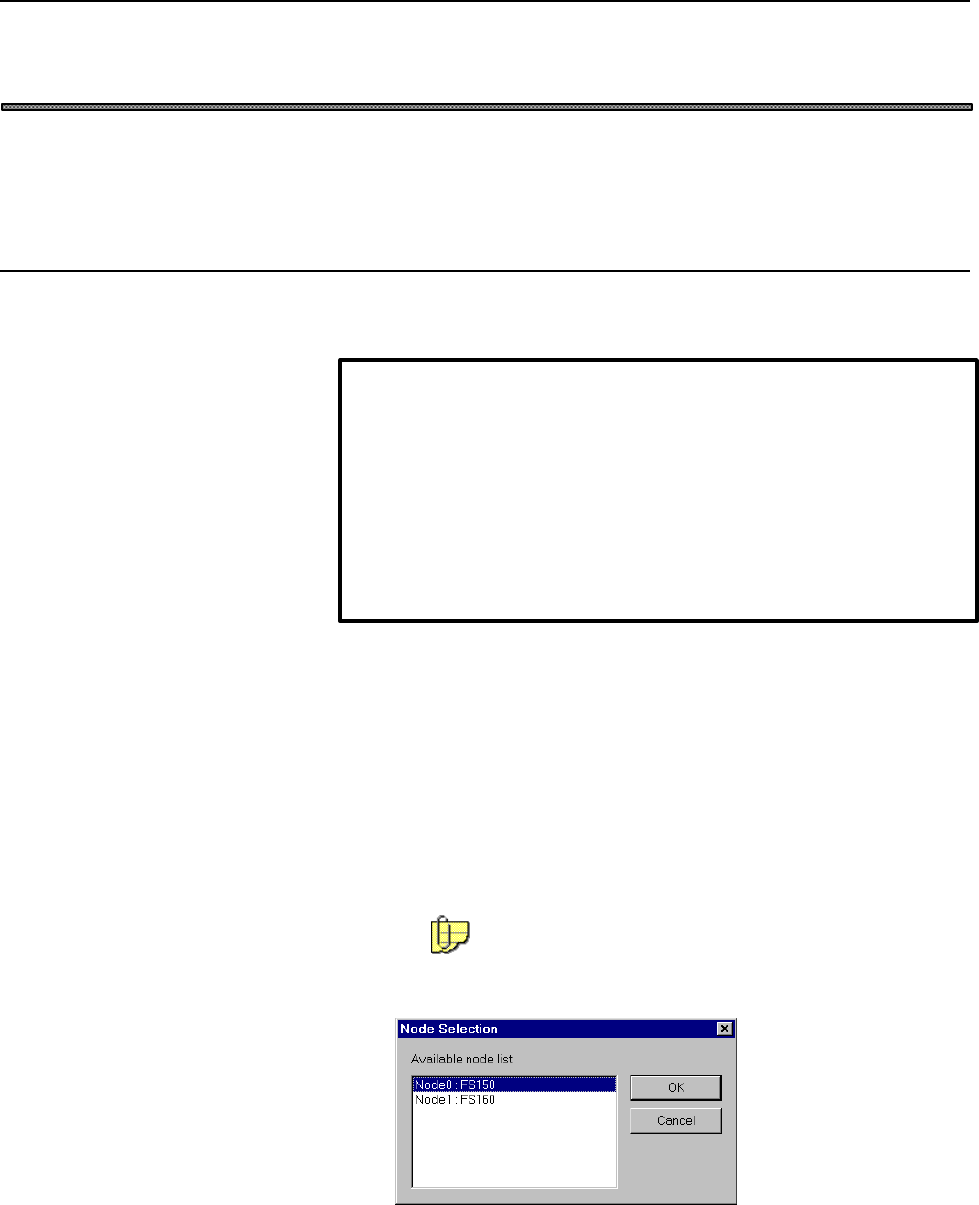

When High Speed Serial Bus multiconnection is being used, the node

selection screen appears if a node number has not been specified for

an argument for Basic Operation Package 1.

For an explanation of how to specify the node number, see

Section 3.2, "Specifying a Node."

4. Select the CNC to be connected.

Click the <OK> button.

NOTE

In an operating environment using the NC Board, the system software

for the NC Board must be loaded before Basic Operation Package 1 is

first started after power-on.

For details, click the [Start] button, then choose [NC Board]-[Guide for

English] from the program menu. (When using Windows 3.1, open

[Guide for English] from the [NC Board] group in the Program

Manager.)
