B-62994EN/02 11. CUSTOMIZATION
-323-
11.1 Customizing General Settings for Basic Operation Package 1
This section explains the basic customization of Basic Operation Package 1.
Procedure
1. Right-click the soft key area.
Alternatively, press the [Application] key on the keyboard (such as the
Microsoft Natural keyboard or 109 keyboard).
Alternatively, press [Shift]+[F10].

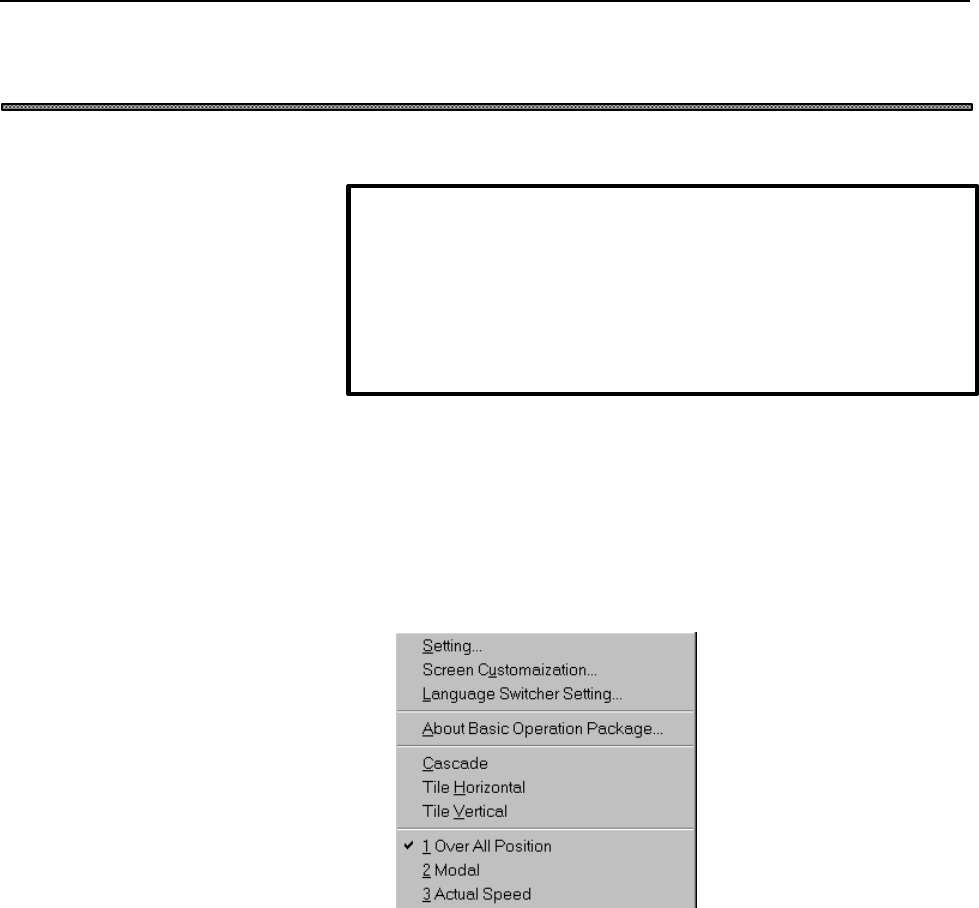

The following pop-up menu appears.
2. Choose [Setting].
The [Setting] screen appears.
NOTE
Customization results are stored in the setting file.
It is recommended that a backup of the setting file be made to guard
against possible data loss.
For details of the setting file, see Appendix 2, "BACKING UP THE
SETTING FILE."
