OPEN CNC (Basic Operation Package 1 for Windows95/NT) Operators manual Page 240

Operators manual

Page of 462

/ 462

7. SYSTEM B-62994EN/02

-222-

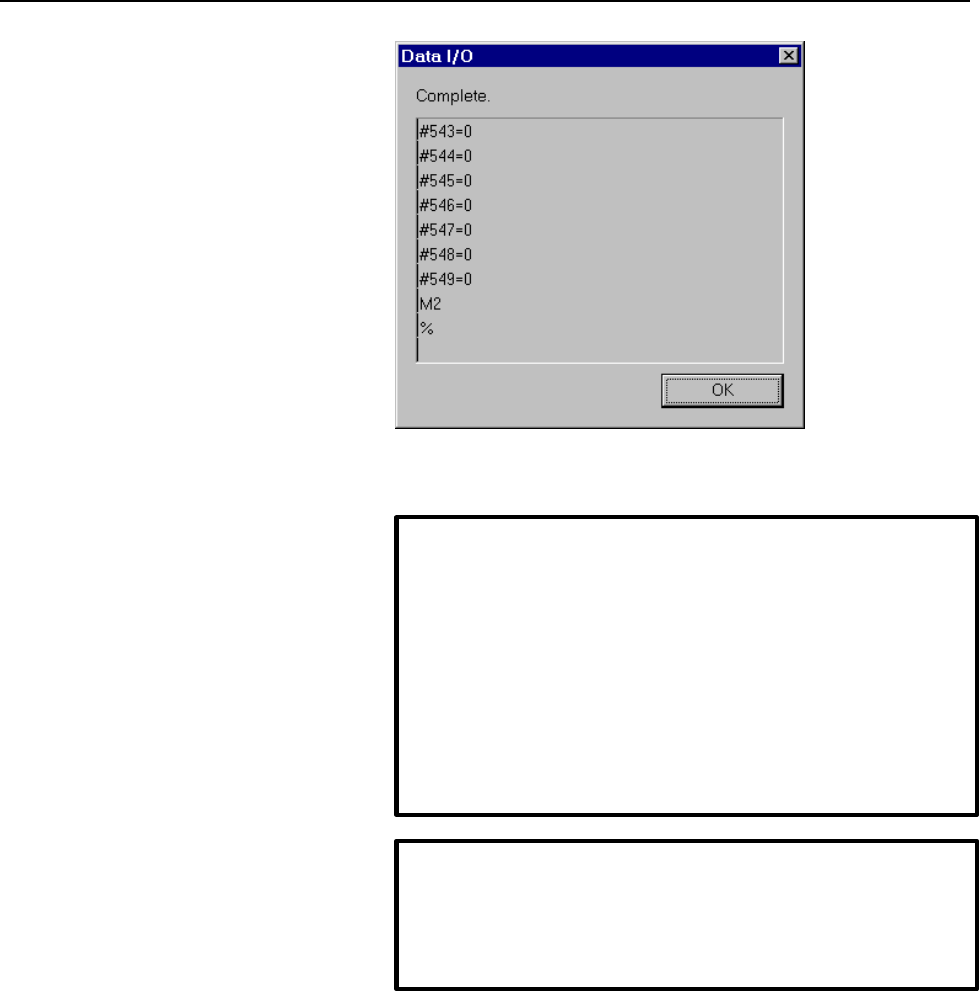

(Example of Screen for Custom Macro Variable Data Output)

7. Click the <OK> button.

WARNING

If the user clicks the <Cancel> button while data is being output,

a data file containing incomplete output data will be created. If

the machine is operated with such incomplete data which is

again entered by data input function, the operation of the

machine may be unpredictable, resulting in damage to the

workpiece or the machine itself, or injury to the operator or

bystanders. Therefore, delete any data file that contains

incomplete output data.

NOTE

If a specified output file name already exists at the output

destination, the data in the existing file is replaced with the new

data.
