OPEN CNC (Basic Operation Package 1 for Windows95/NT) Operators manual Page 57

Operators manual

Page of 462

/ 462

B-62994EN/02 4. POSITION DISPLAY

-39-

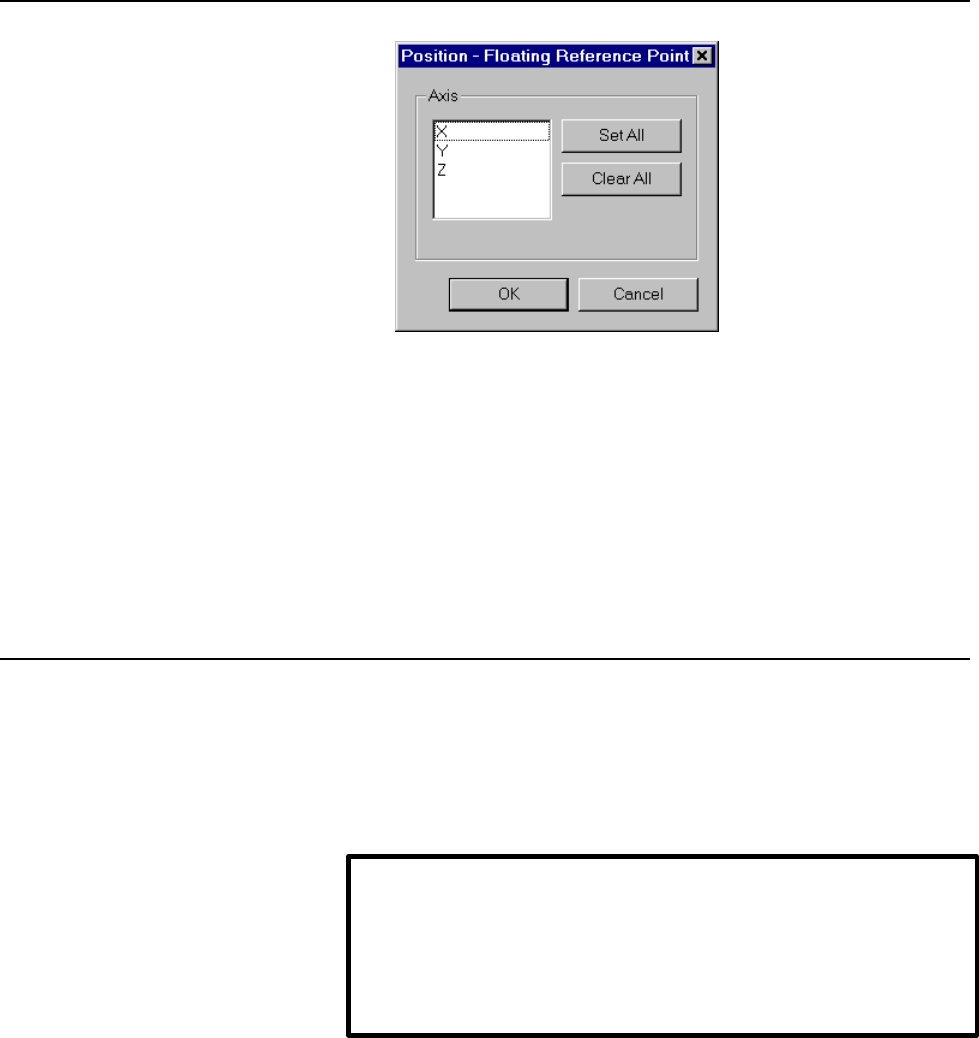

3. Select one or more axes for which the machine position is to be set to

the floating reference position.

To select all the axes, click the <Set All> button.

To deselect all the axes, click the <Clear All> button.

Clicking the <OK> button sets the machine position to the floating

reference position.

The set values can be checked by referencing parameter No. 1244.

4.2.4 Presetting the workpiece coordinate system

The workpiece coordinate system can be preset.

The absolute coordinate on the preset axis is set as follows:

Absolute coordinate value = current absolute coordinate value - the value

on the corresponding axis for workpiece origin offset number 0

Procedure

1. If the [Over All Position] screen (or [Relative Position] screen) is

currently not displayed, display the [Over All Position] screen (or

[Relative Position] screen) by applying the procedure explained in

Section 4.1, "Overall Position Display" (or Section 4.2, "Displaying the

Relative Position").

NOTE

To preset the workpiece coordinate system for the FS160/180/210 or

NC Board, the corresponding CNC option is required.

The workpiece coordinate system cannot be preset for the Power

Mate.
