B-62994EN/02 11. CUSTOMIZATION

-351-

• EXE file

An EXE file is a general Windows application such as Notepad.

This type of application is not displayed in a child window, and runs

independently of Basic Operation Package 1.

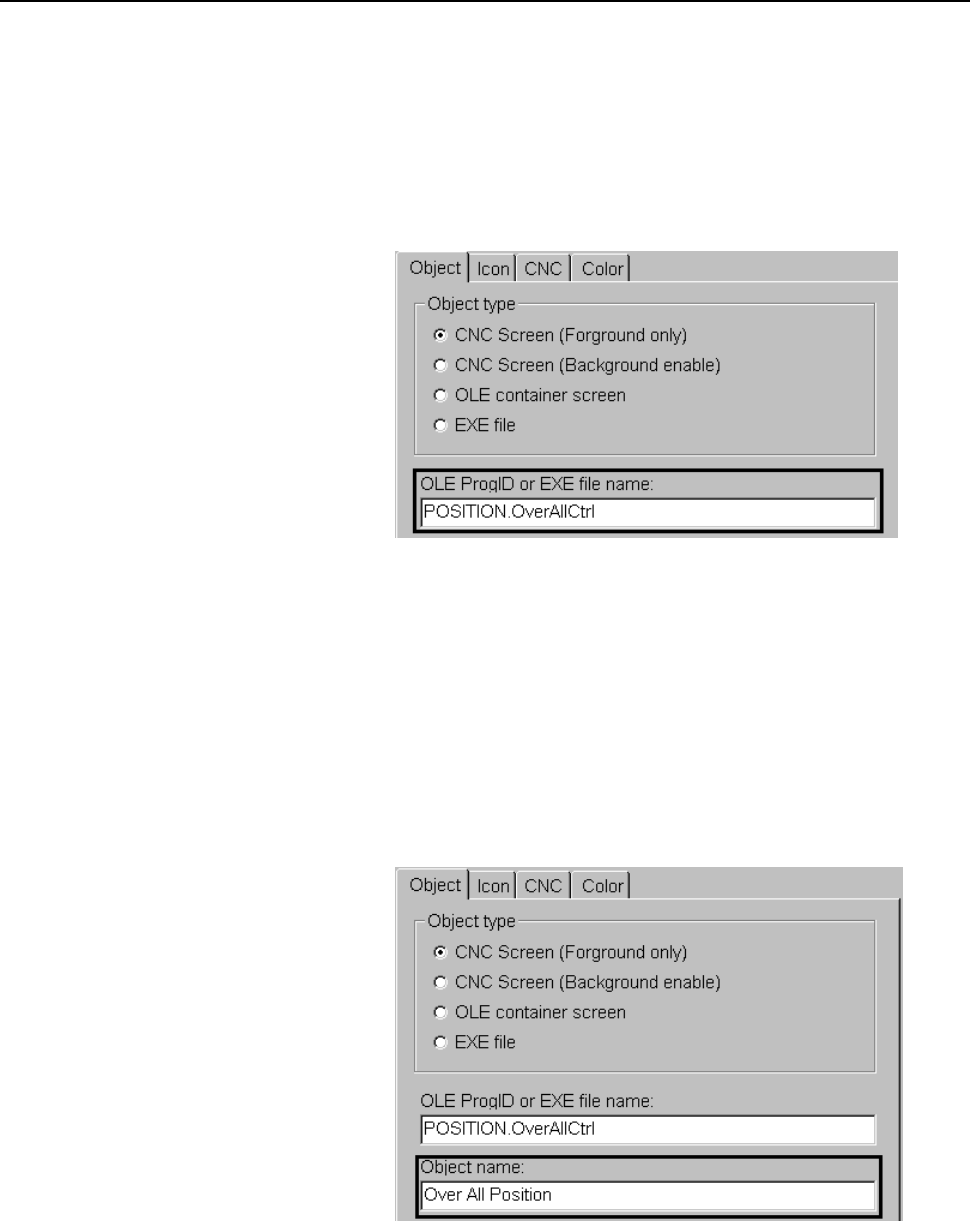

5. Enter a value in "OLE ProgID or EXE file name:".

When "CNC Screen" or "OLE container screen" is selected for the

object type, enter OLE ProgID of the OLE object to be used. If a null

string is entered as OLE ProgID, no information is displayed in the

child window.

When "EXE file" is selected for the object type, enter the EXE file

name (preferably the full path name).

6. In "Object name:", enter text to be displayed on the title bar of the

child window.
