5. NC PROGRAM B-62994EN/02
-106-
5.6 Restarting a NC Program
This section explains how to set the axis order of movement at NC program
restart and how to search for a block to be restarted.

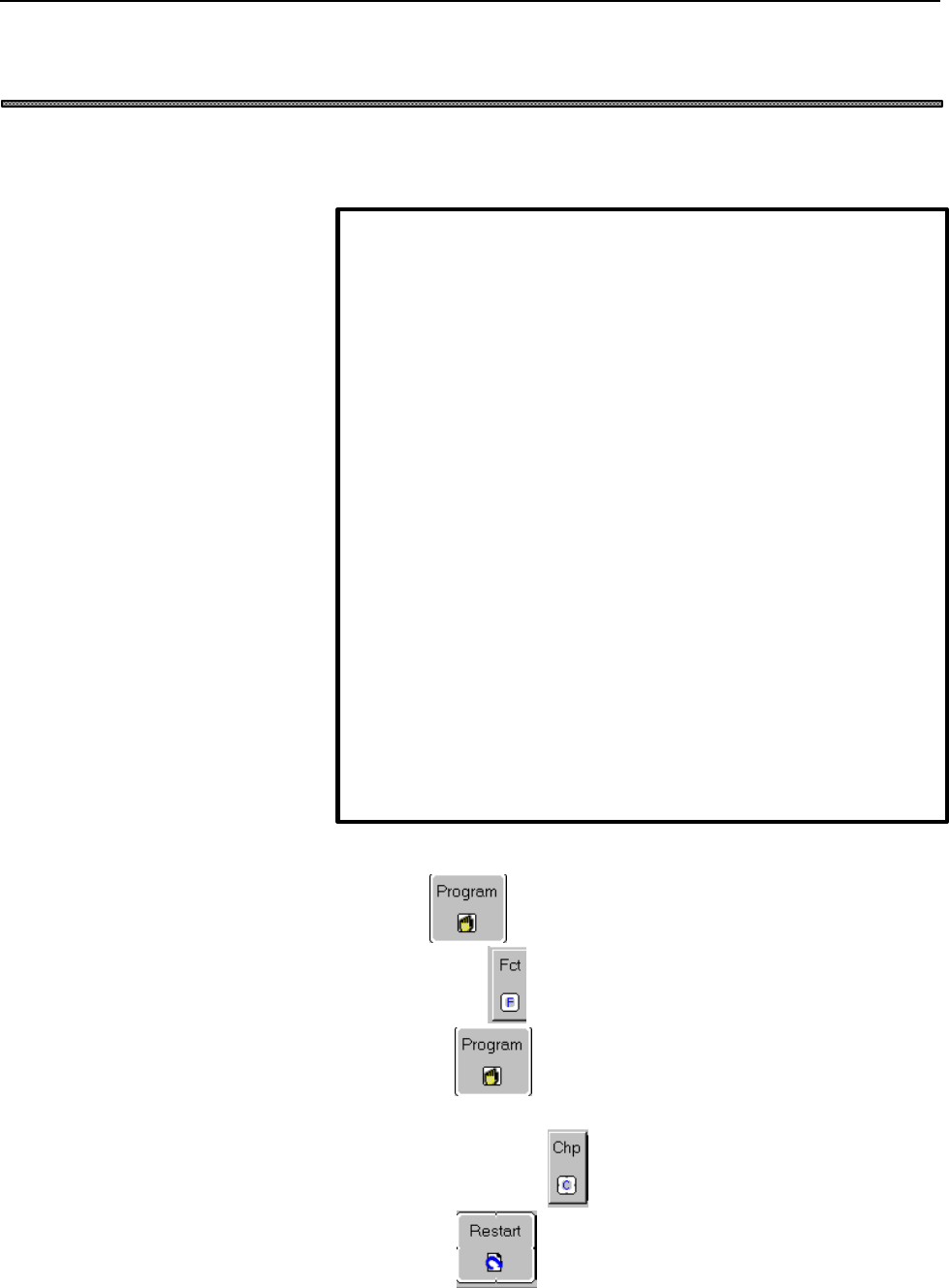

Procedure
1. If the soft key is currently not displayed, press the function
selection key .
2. Press the soft key.
3. If the [Program Restart] screen is currently not displayed, press the
chapter selection key .
Press the soft key.
The [Program Restart] screen appears.
NOTE
A CNC option is required to restart a program.
To restart a program, set the following status:
When the Power Mate is used, no NC program can be restarted.
To restart an NC program, set the following status:
FS15
l Operation
• Stopped or paused in MEMORY mode or TAPE mode
• Program restart signal set to ON
FS16/18/21 or NC Board
l Operation
• Stopped or paused in MEMORY mode
• Program restart signal set to ON
For explanations of how to turn on the program restart signal and how
to restart a program, refer to the manual supplied by the machine tool
builder.
To change the CNC operating mode from the software operator's
panel, see Section 6.7, "Software Operator's Panel Settings."
