B-62994EN/02 7. SYSTEM
-265-
7.15 Setting the PMC Timer
This section describes how to set the PMC timer.

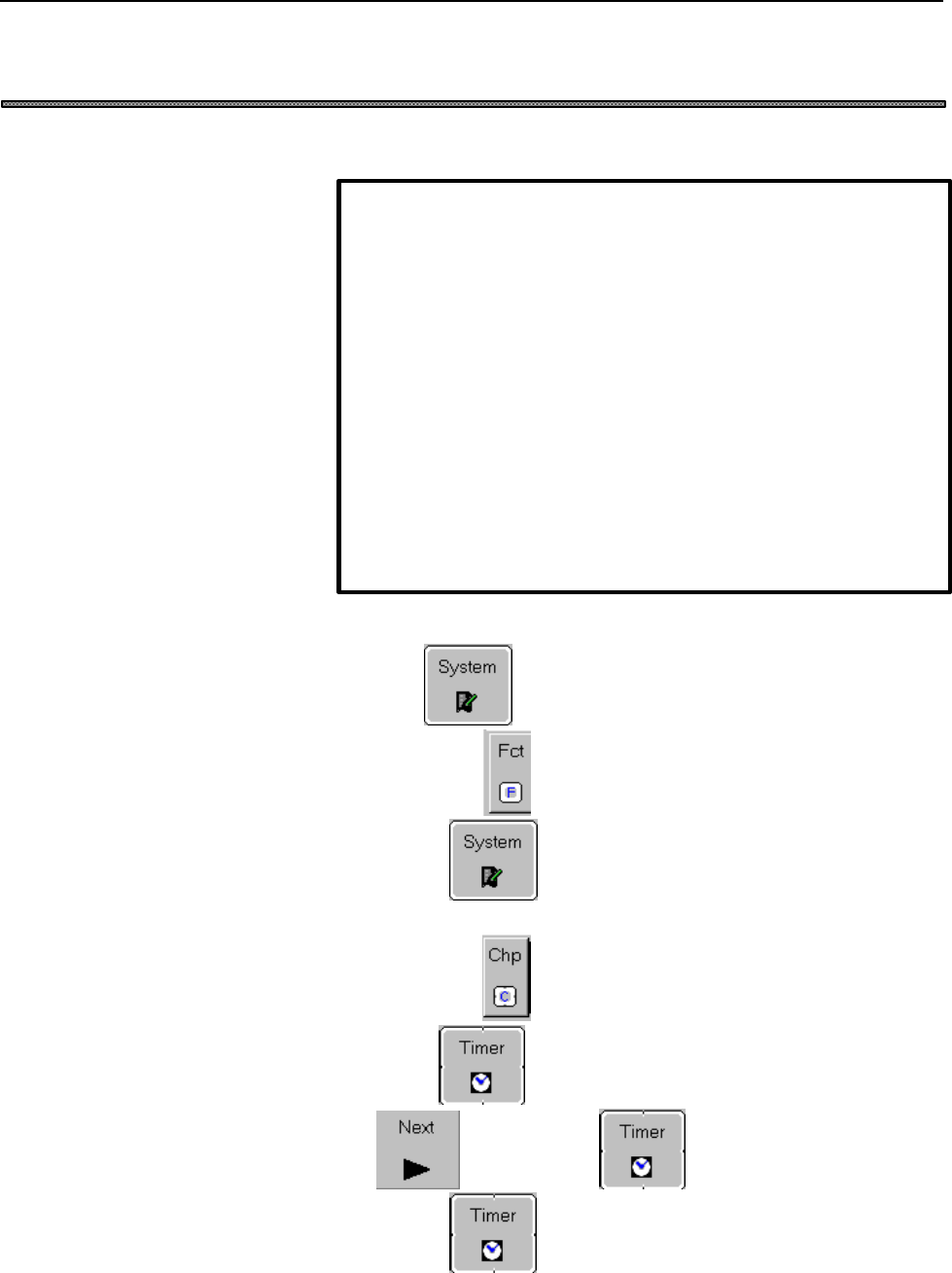

Procedure
1. If the soft key is currently not displayed, press the function
selection key .
2. Press the soft key.
3. If the [PMC Timer] screen is currently not displayed, press the chapter
selection key .
4. If the soft key is currently not displayed, press the
soft key until the soft key is displayed.
Press the soft key.
The [PMC Timer] screen is displayed.
NOTE
To set the PMC timer, set the following status:
l Operation
Set either of the following statuses:
• Emergency stop
• Reset in MDI mode
l Setting data
• Enable Parameter Write.
For an explanation of how to specify the setting data, see Section 6.1,
"Setting Data." To change the CNC operating mode from the software
operator's panel, see Section 6.7, "Software Operator's Panel
Settings."
