5.1.2 Writing a NC program back to the NC

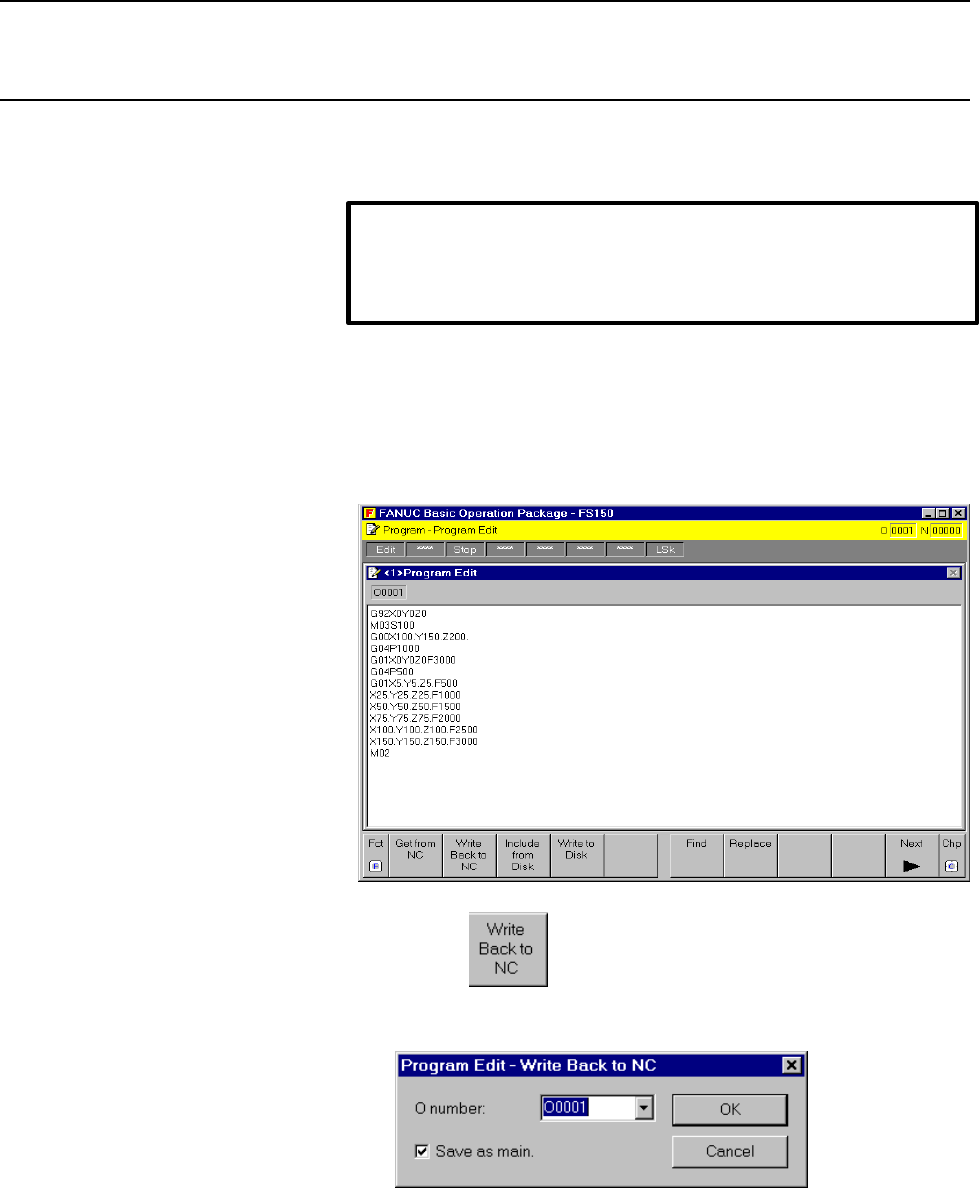

A NC program on the edit screen of Basic Operation Package 1 can be
written back to the CNC.
Procedure
1. If the [Program Edit] screen is currently not displayed, display the
[Program Edit] screen by applying the procedure explained in Section
5.1, "Editing a NC Program."
2. Press the soft key.
The [Program Edit - Write Back to NC] screen appears.
3. Specify the name of a NC program to be written back to the CNC.
When the NC program to be written is to be executed next, click the
[Save as main] check box.
Click the <OK> button.
NOTE
When the FS16/18/21 or NC Board is being used, this function cannot
be used in MDI mode.
