OPEN CNC (Basic Operation Package 1 for Windows95/NT) Operators manual Page 241

Operators manual

Page of 462

/ 462

B-62994EN/02 7. SYSTEM

-223-

(2) When the output device is a Dumb terminal, serial interface tape reader,

portable tape reader, or FANUC PPR

Procedure

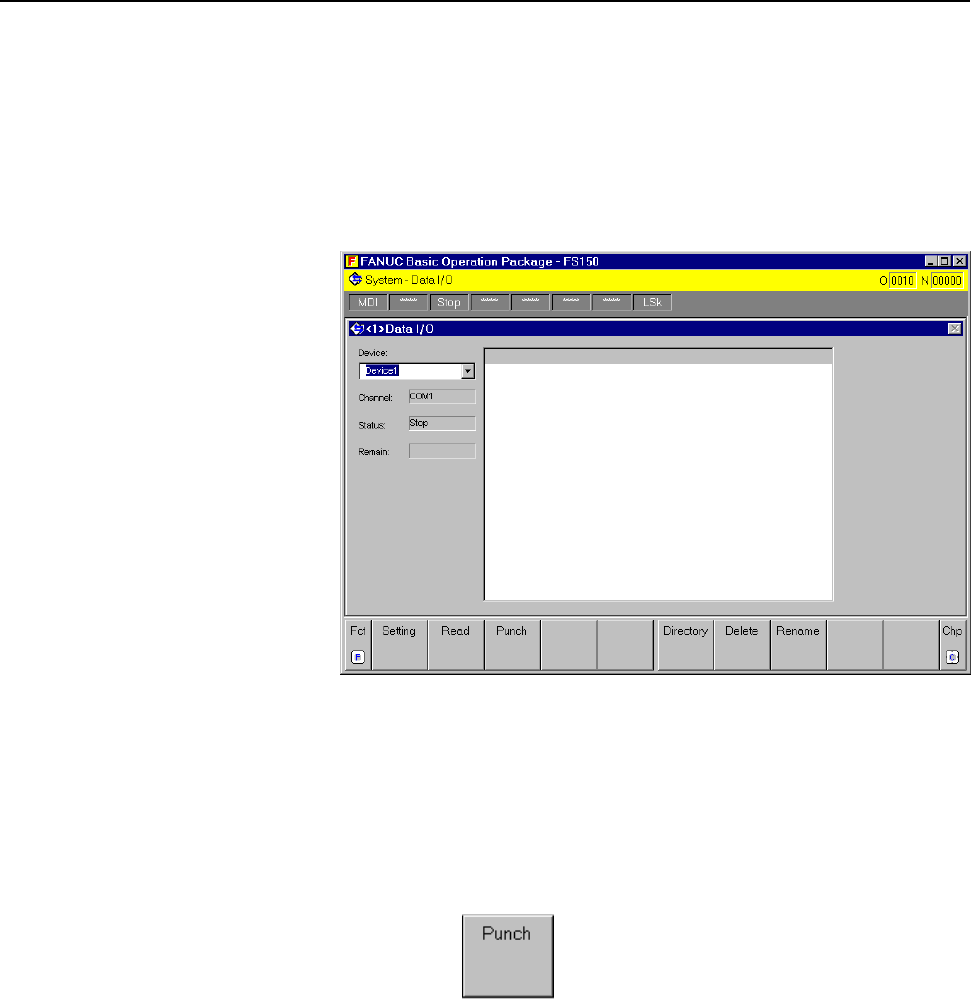

1. If the [Data I/O] screen is currently not displayed, display the [Data I/O]

screen as explained in Section 7.4 "Data Input/Output."

2. If the parameters for data input/output have not yet been set, set the

required parameters.

For an explanation of how to make this setting, see Section 7.4.1,

"Setting parameters for input/output."

3. Check that COM1 or COM2 is selected for Channel. If neither COM1

nor COM2 is selected, select COM1 or COM2, as required, for the

output device to be used.

4. Press the soft key.

The [Data I/O - Punch] screen is displayed.

If the communication device is not connected correctly, for example, an

error message is displayed. In such a case, check the communication

settings, the cable connection, power supply for the communication

device, and so forth.
