OPEN CNC (Basic Operation Package 1 for Windows95/NT) Operators manual Page 211

Operators manual
B-62994EN/02 6. SETTING
-193-
Explanation

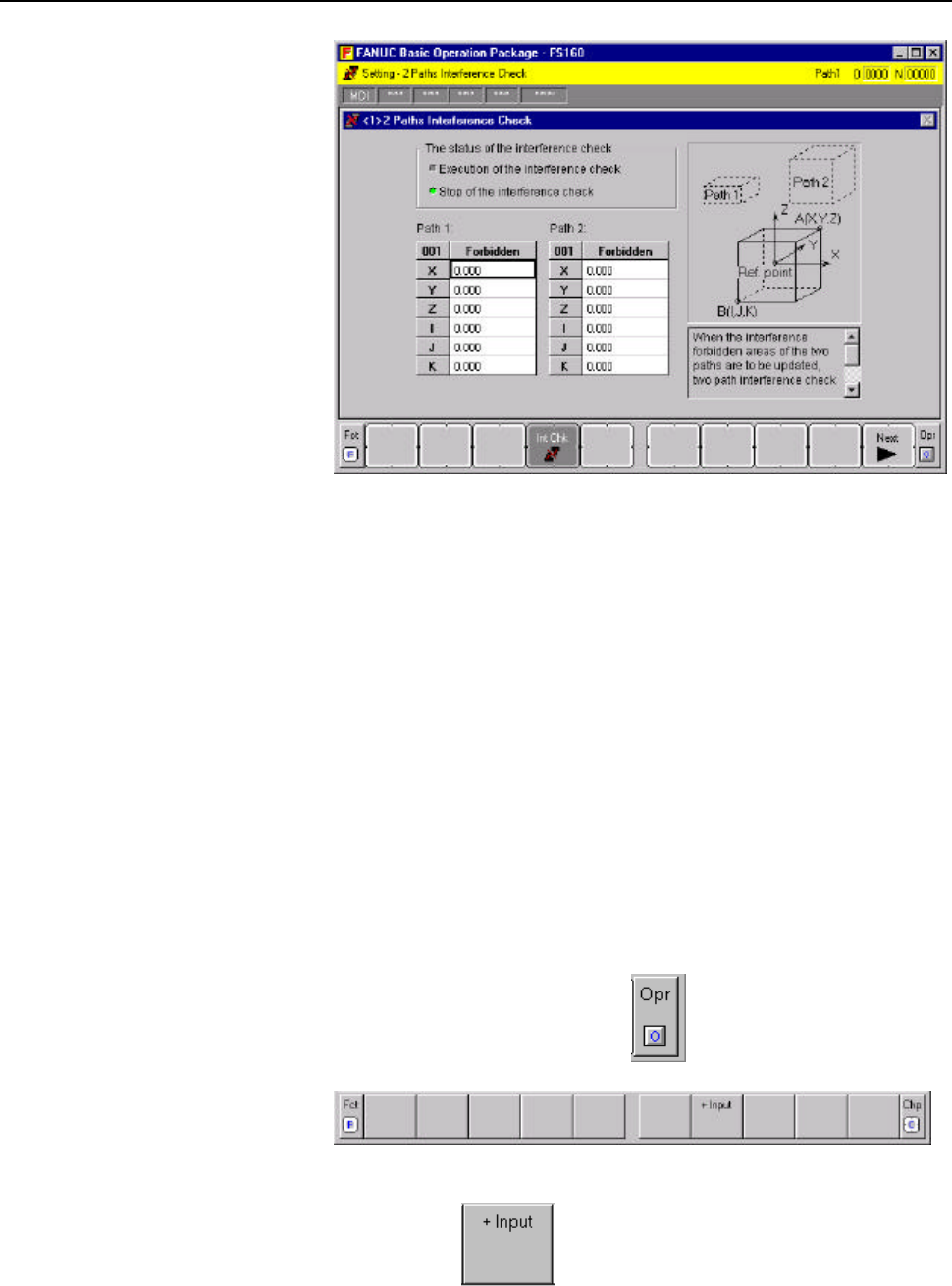

On this screen, set interference-forbidden area data to perform 2-path
interference checks.
l Displayed settings
• Interference check status
When all the requirements for 2-path interference checks are
satisfied, the "Execution of the interference check" button lights;
otherwise, the "Stop of the interference check" button lights.
• Interference-forbidden area data
Set interference-forbidden areas. Use the arrow keys or mouse to
select a desired item. Then, input a value and press the [Enter] key.
For an interference-forbidden area, the following must be satisfied:
X > I, Y > J, Z > K
l Operation soft keys
Press the operation selection key .
The operation soft keys appear.
• Incremental input of interference-forbidden area data
Press the soft key to perform incremental input.
