7. SYSTEM B-62994EN/02

-220-

7.4.4 Outputting different types of data

This section describes how to output different types of data.

Here, data output means transferring data from the CNC to Basic Operation

Package 1.

(1) When the output device is a disk

Procedure

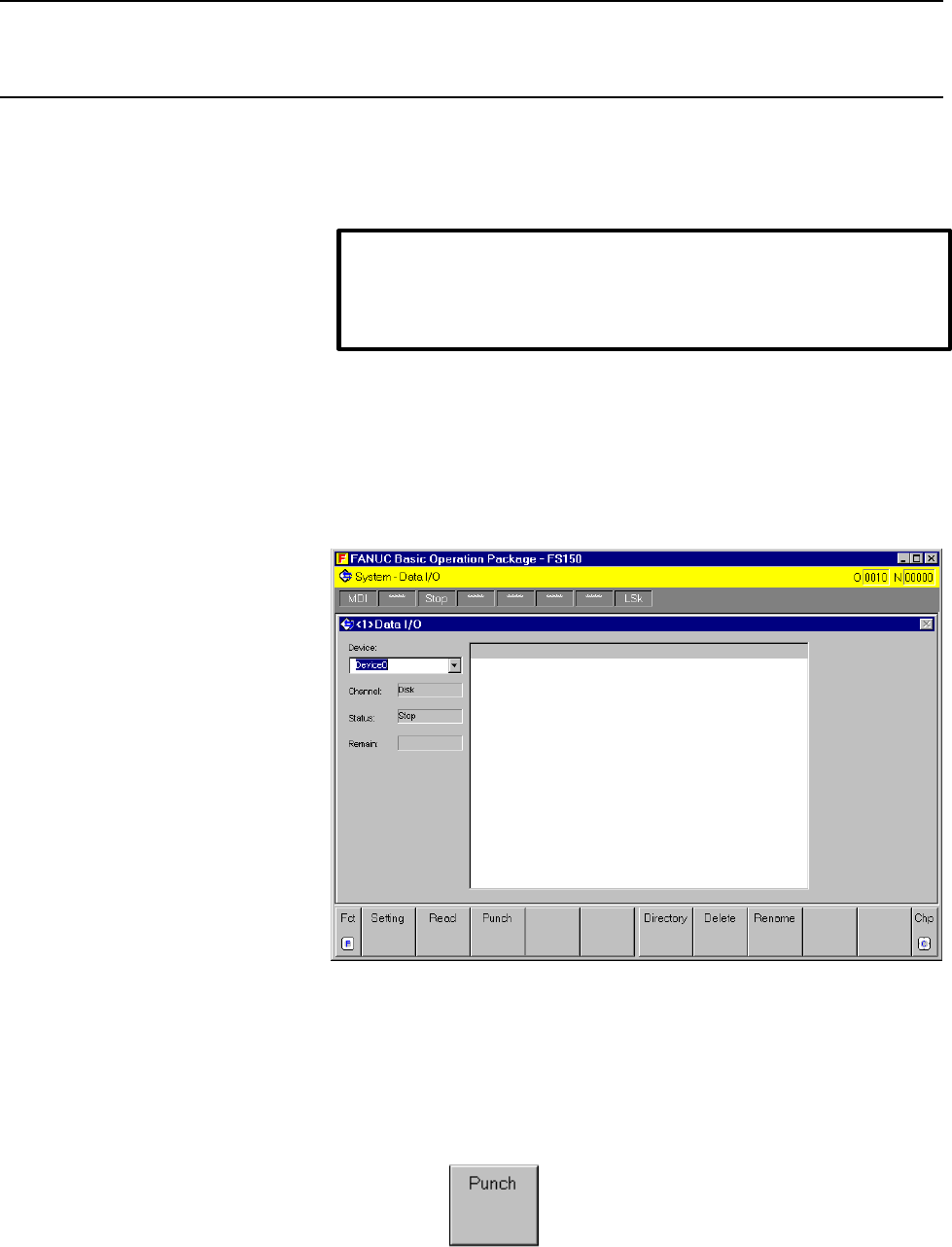

1. If the [Data I/O] screen is currently not displayed, display the [Data I/O]

screen as explained in Section 7.4 "Data Input/Output."

2. If the parameters for data input/output have not yet been set, set the

required parameters.

For an explanation about how to make this setting, see Section 7.4.1,

"Setting parameters for input/output."

3. Check that Disk is selected for Channel. If Disk is not selected, select

Disk for the output device to be used.

4. Press the soft key.

The [Data I/O - Punch] screen is displayed.

NOTE

The Power Mate-D does not support the output of pitch error

compensation data.
