4. POSITION DISPLAY B-62994EN/02
-46-
4.6 Displaying the Amount of Handle Interruption
This section describes how to display the amount of handle interruption.
Procedure
1. If the soft key is currently not displayed, press the function
selection soft key .
2. Press the soft key.

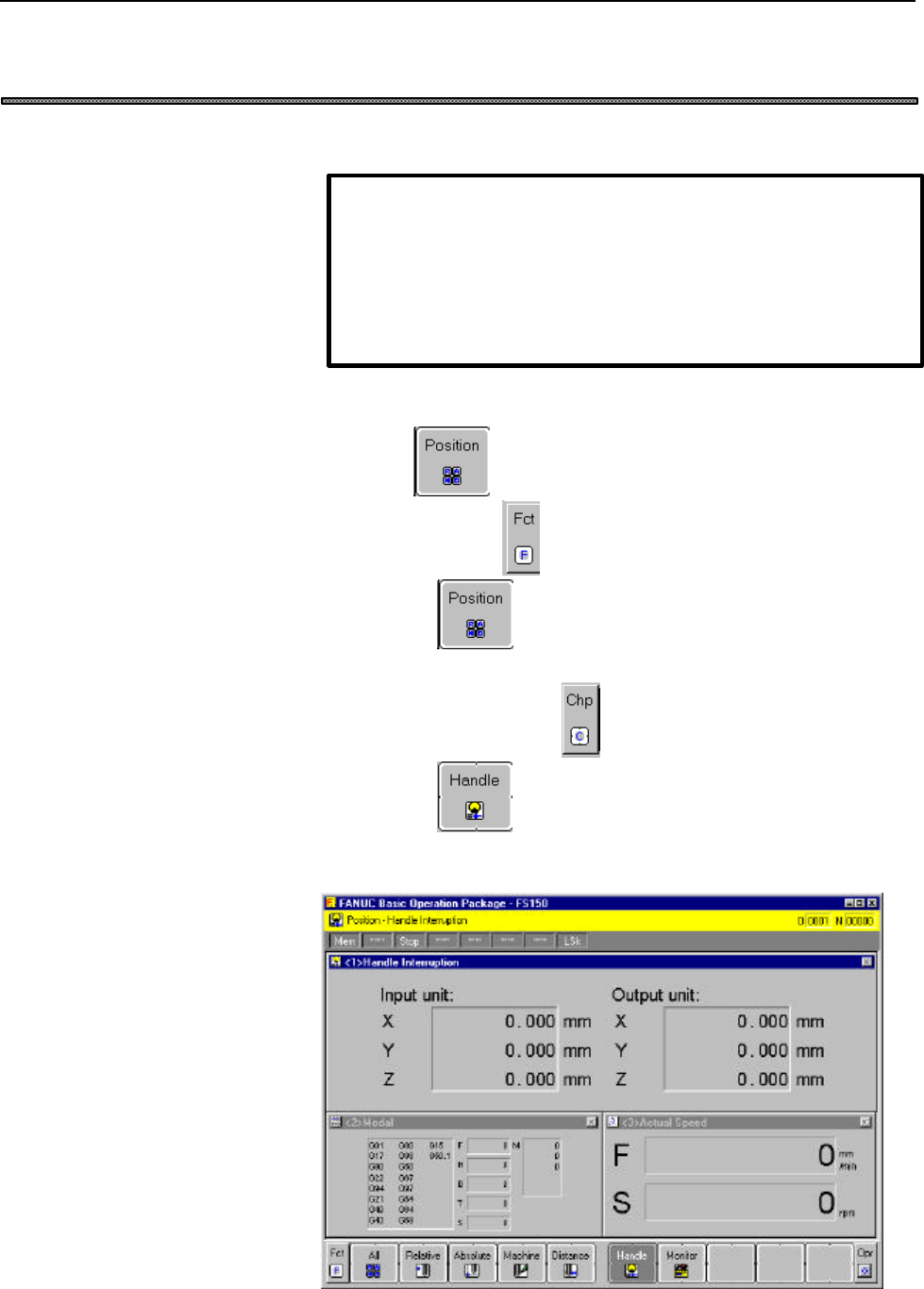

3. If the [Handle Interruption] screen is currently not displayed, press the
chapter selection soft key .
Press the soft key.
The [Handle Interruption] screen appears.
NOTE
When the FS15, FS16/18/21, Power Mate-H, or NC Board is used, to
display the amount of handle interruption, the corresponding CNC
option is required.
For an explanation of handle interruption, refer to the manual supplied
by the machine tool builder.
