B-62994EN/02 7. SYSTEM

-215-

6. Select the input data type from the following:

• Program

• Tool offset data

• Custom macro variable

• Parameter

• Pitch error compensation data

When a program is selected as an input data type, a new program

number can also be specified for the program.

Click the <OK> button.

If the input device is a serial interface tape reader, portable tape reader,

or FANUC PPR, the [Data I/O] screen is displayed and data input is

executed.

7. If the input device is a Dumb terminal, data transmission operation is to

be performed on the Dumb terminal.

Data input is executed.

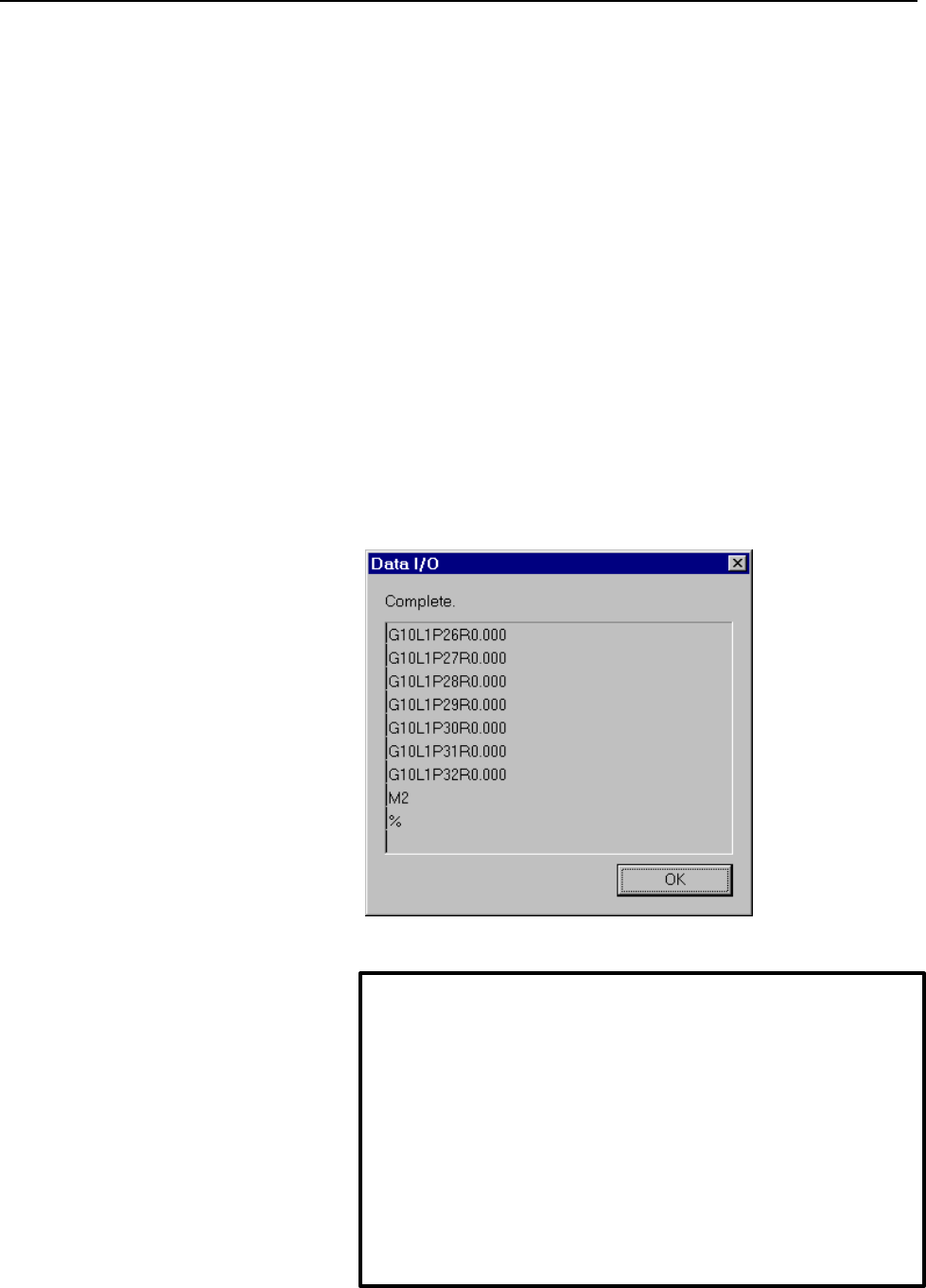

(Example of Screen for Tool Offset Data Input)

WARNING

If the user clicks the <Cancel> button while data is being entered,

incomplete data will exist in the CNC. If the machine is operated

with such incomplete data, the operation of the machine may be

unpredictable, resulting in damage to the workpiece, the machine

itself, or injury to the operator or bystanders.

Never cancel data input before all the data has been entered. If

data input is cancelled before the completion of data input, all the

data must be entered again, starting from the beginning. Thus,

ensure that the data is input correctly.
