6. SETTING B-62994EN/02
-122-

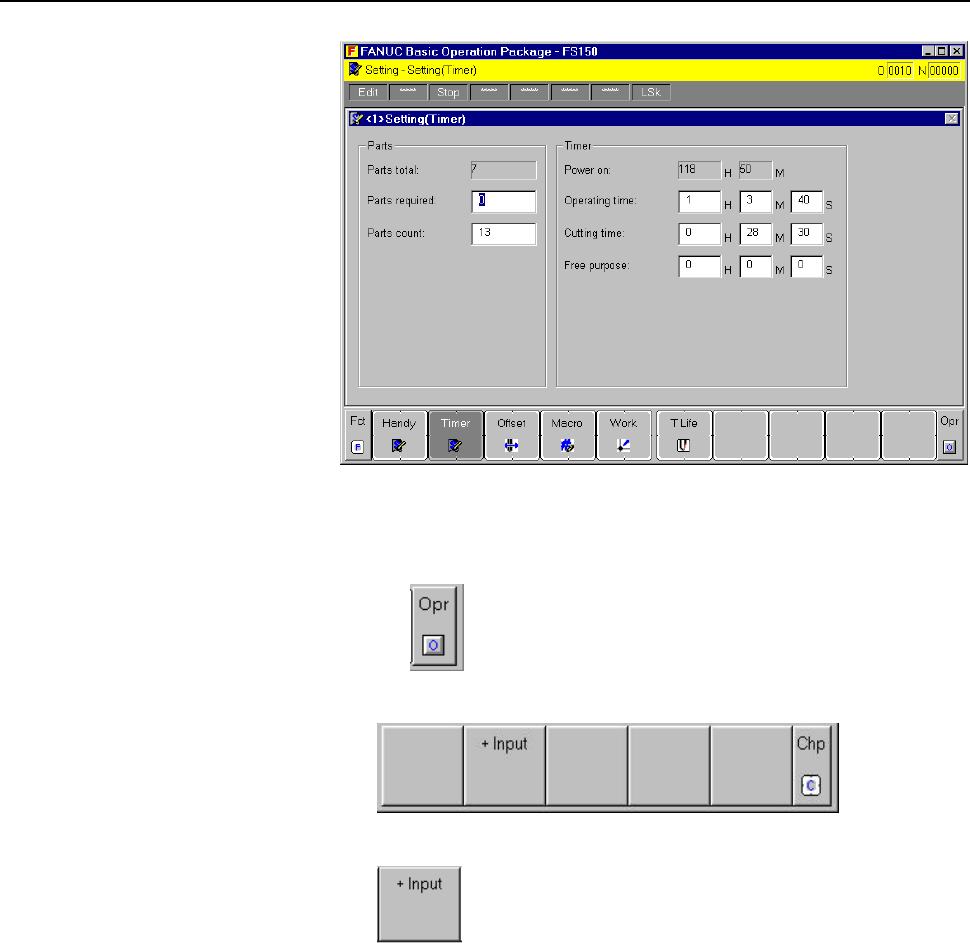

Explanation
l Operation soft keys
To input an increment as a numeric input, press the operation selection
key .
The operation soft keys appear.
To perform incremental input for numeric data input, press the
soft key.
l Data to be set
• Parts total
Indicates the value counted when M02, M30, or another M code
specified in a parameter is executed. The value cannot be set on this
screen but can be set by a parameter.
For details of the parameters, see the parameter description for the
CNC being used.
• Parts required
Specify the number of parts required. When zero is set, an infinite
number of parts is assumed.
This value can also be set by a parameter.
For details of the parameters, see the parameter description for the
CNC being used.
