B-62994EN/02 7. SYSTEM
-257-
7.11.1 Selecting the waveform diagnosis data to be displayed
This section describes how to select the waveform diagnosis data to be
displayed. Waveform diagnosis data stored in a file can also be selected.
Procedure
1. If the [Wave Diagnosis Graph] screen is currently not displayed, display
the [Wave Diagnosis Graph] screen according to Section 7.11
"Displaying Waveform Diagnosis Graphs."
2. Press the soft key.

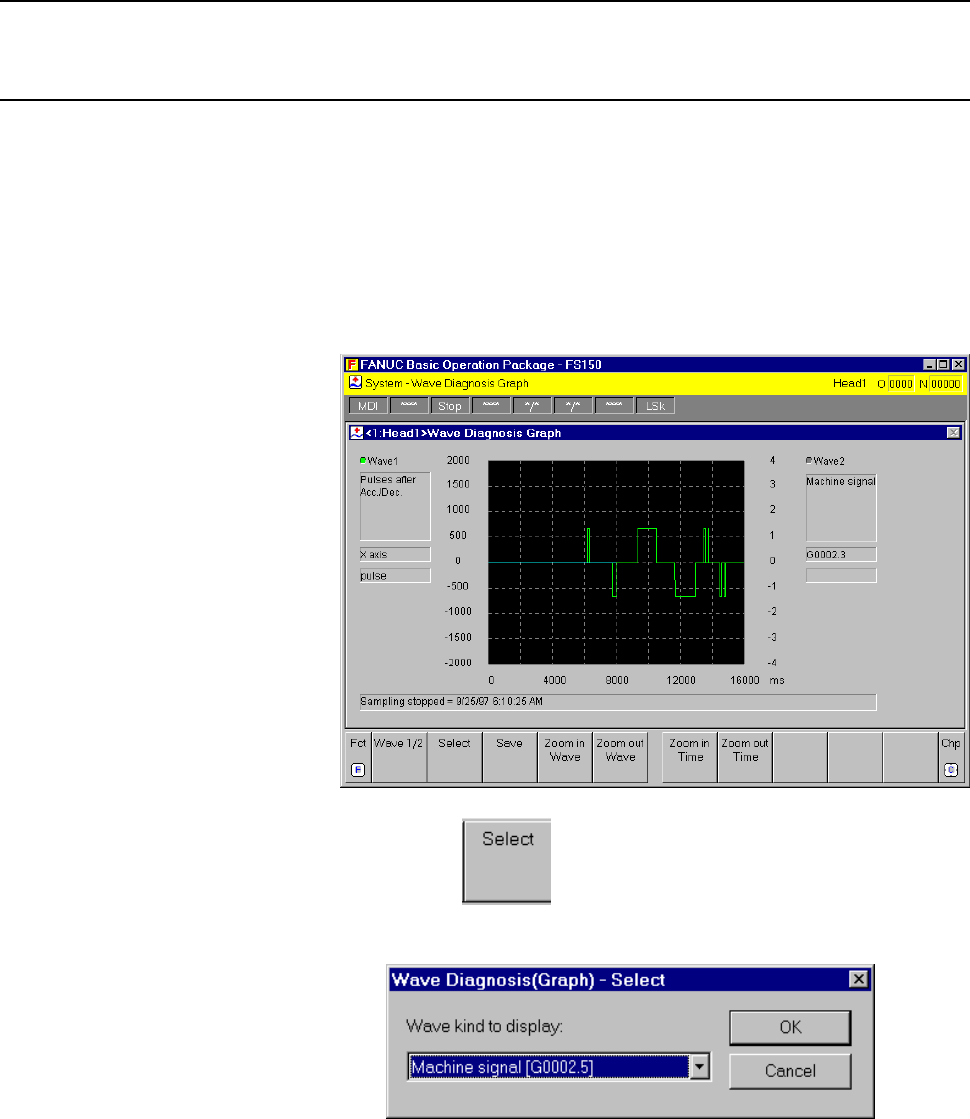

The [Wave Diagnosis(Graph) - Select] screen is displayed.
3. Select the waveform data to be displayed.
If waveform data is selected from the displayed list, the selected
waveform is displayed.
To display the waveform data stored in a file, select File.
Here, File is selected.
Then, the [Wave Diagnosis(Graph) - Open Wave Data File] screen is
displayed.
