B-62994EN/02 4. POSITION DISPLAY
-49-
4.7 Displaying the Operating Monitor
This section describes how to display the operating monitor.
Procedure
1. If the soft key is currently not displayed, press the function
selection soft key .
2. Press the soft key.
3. If the [Operating Monitor] screen is currently not displayed, press the
chapter selection soft key .
Press the soft key.

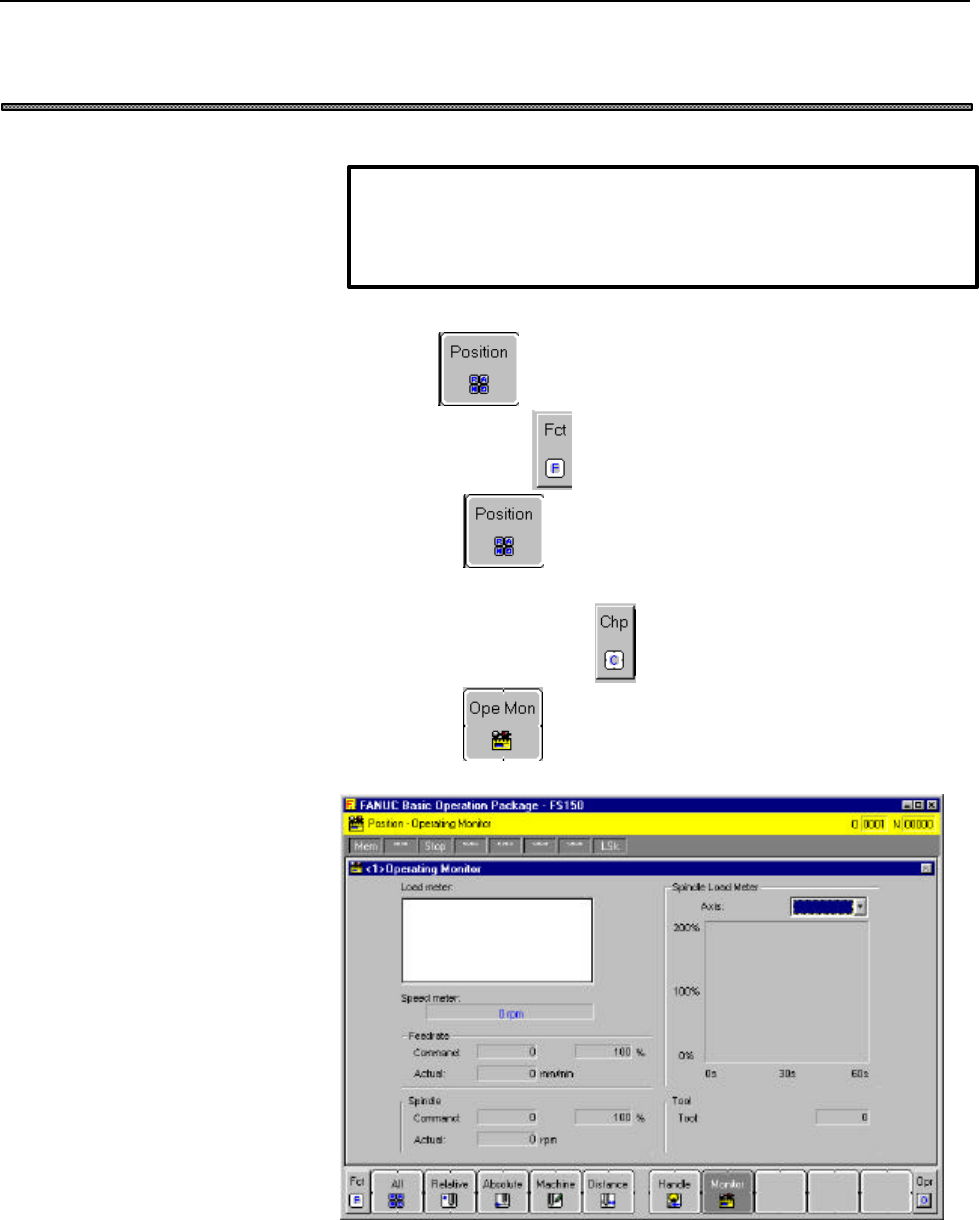

The [Operating Monitor] screen appears.
Explanation
l Operating monitor screen
Displays the load (torque) values for the spindle and servo motors. No
operation can be performed on this screen.
NOTE
When the Power Mate is used, the operating monitor screen cannot
be displayed.
