OPEN CNC (Basic Operation Package 1 for Windows95/NT) Operators manual Page 192

Operators manual
6. SETTING B-62994EN/02
-174-

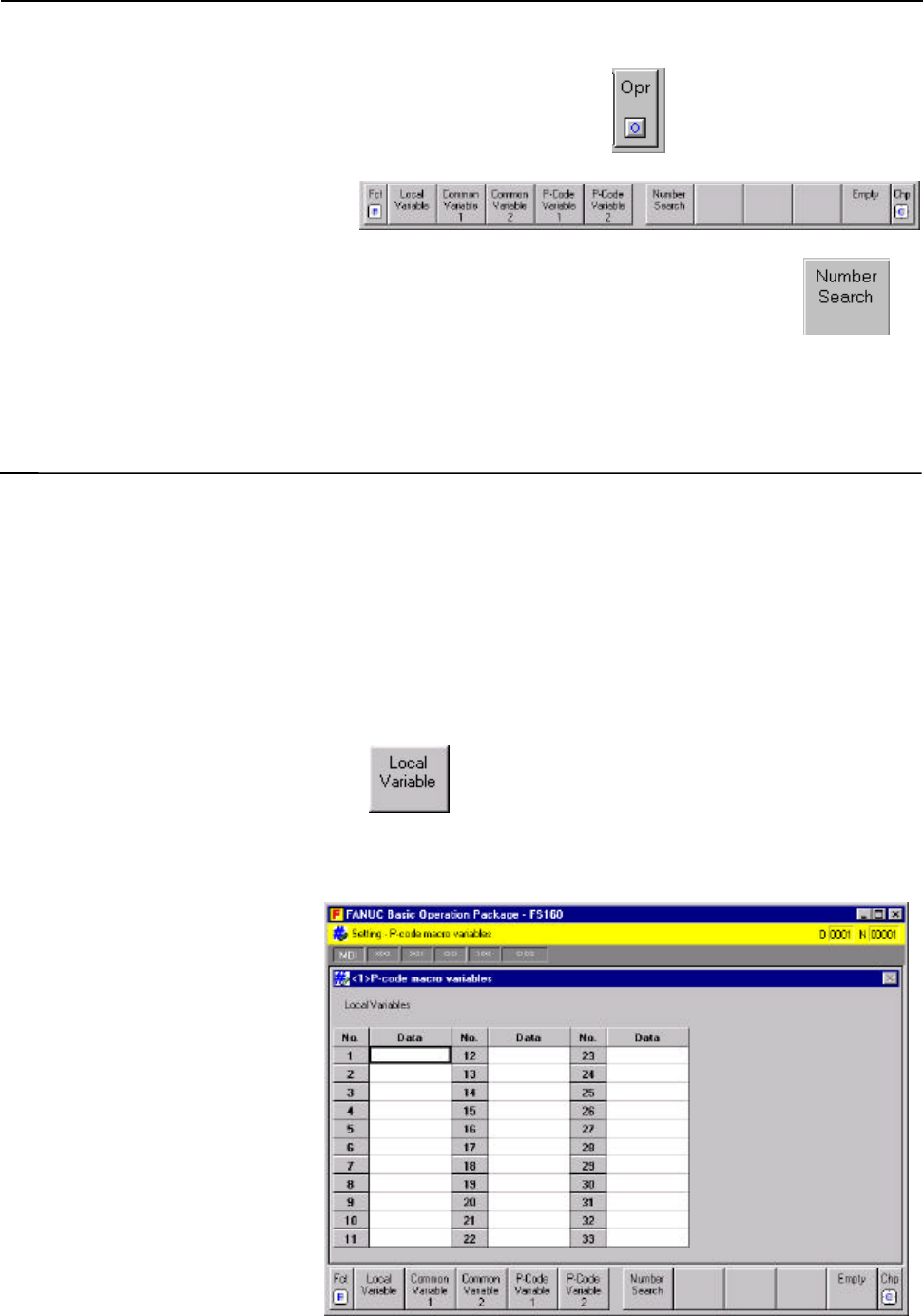

l Operation soft keys
Press the operation selection key .
The operation soft keys appear.
• Searching for a P-code macro variable
To find the desired P-code macro variable, press the soft
key and specify a desired variable number.
For an explanation of the other functions, see the description below.
6.9.1 Displaying local variables
P-code macro local variables can be displayed.
The variable numbers range from #1 to #33. The variables cannot be set on
this screen.
Procedure
1. When the [P-code macro variables] screen is currently not displayed,
follow the procedure described in Section 6.9, "P-Code Macro Variable
Settings" to display the [P-code macro variables] screen.
2. When the local variables are currently not displayed, press the
soft key.
The local variables are displayed on the [P-code macro variables]
screen.
