(3) When the output device is a FANUC Cassette, FANUC Floppy Cassette,
FANUC Handy File, or FANUC Program File Mate
Procedure

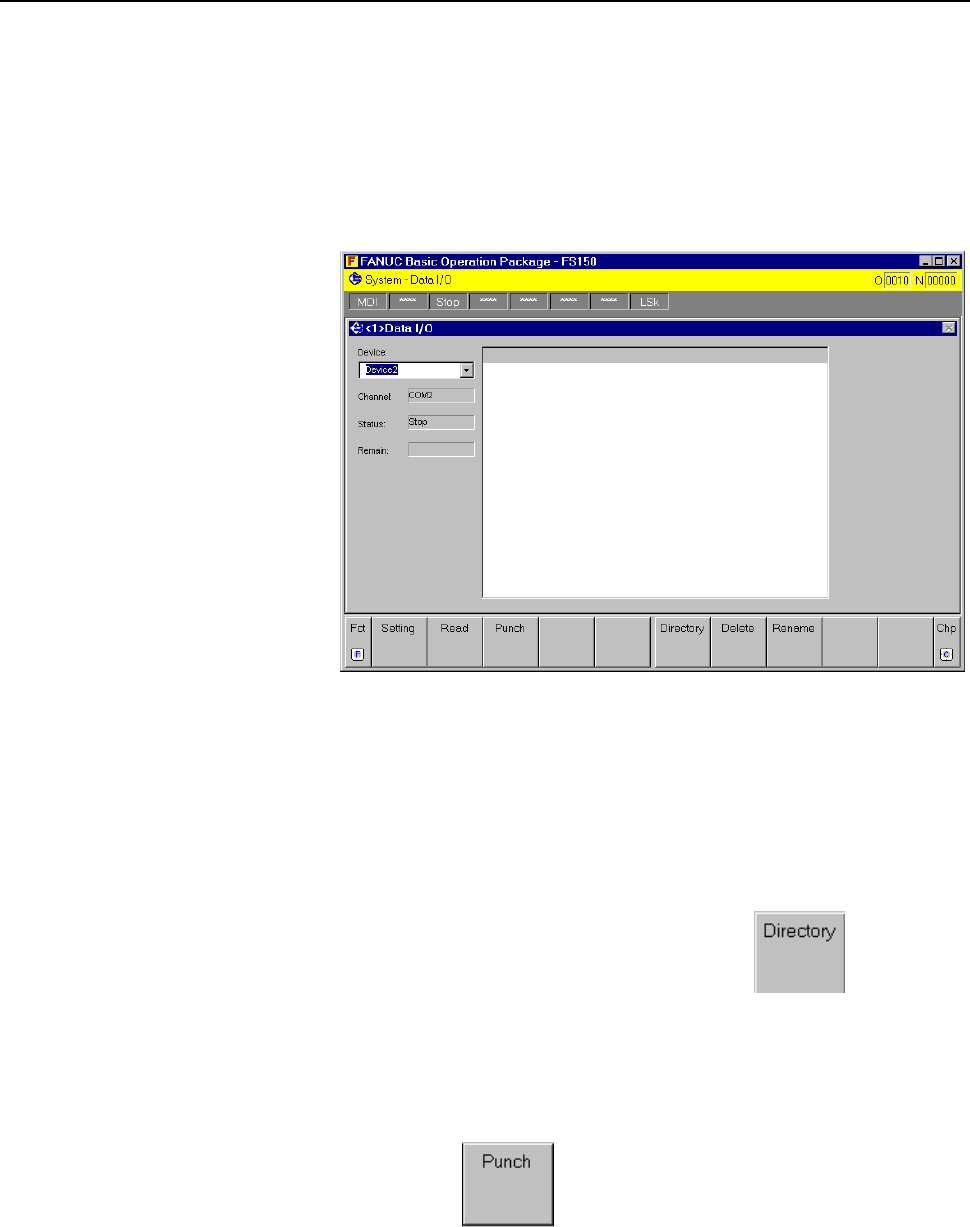

1. If the [Data I/O] screen is currently not displayed, display the [Data I/O]
screen as explained in Section 7.4 "Data Input/Output."
2. If the parameters for data input/output have not yet been set, set the
required parameters.
For an explanation of how to make this setting, see Section 7.4.1,
"Setting parameters for input/output."
3. Check that COM1 or COM2 is selected for Channel. If neither COM1
nor COM2 is selected, select COM1 or COM2, as required, for the
output device to be used.
4. To check the output destination file, press the soft key.
A file list is displayed.
If the communication device is not connected correctly, for example, an
error message is displayed. In such a case, check the communication
settings, the cable connection, power supply for the communication
device, and so forth.
5. Press the soft key.
The [Data I/O - Punch] screen is displayed.
If the communication device is not connected correctly, for example, an
error message is displayed. In such a case, check the communication
settings, the cable connection, power supply for the communication
device, and so forth.
