B-62994EN/02 6. SETTING

-119-

• Sequence number

Specify whether a sequence number is automatically inserted when the

program is edited in EDIT mode.

When the box is checked, the sequence number is automatically

inserted.

• Punch code

Specify the data code output by the CNC using the reader/puncher

interface.

• Input unit

Specify the input unit (millimeters or inches).

• Tape format (for FS16, FS18, FS21, and NC Board only)

Specify whether to convert to the FS15 tape format.

• I/O Channel (for FS16, FS18, and FS21 only)

Specify the channel number of the reader/puncher interface.

For details of the channel numbers that can be specified, see the

parameter description for the CNC being used.

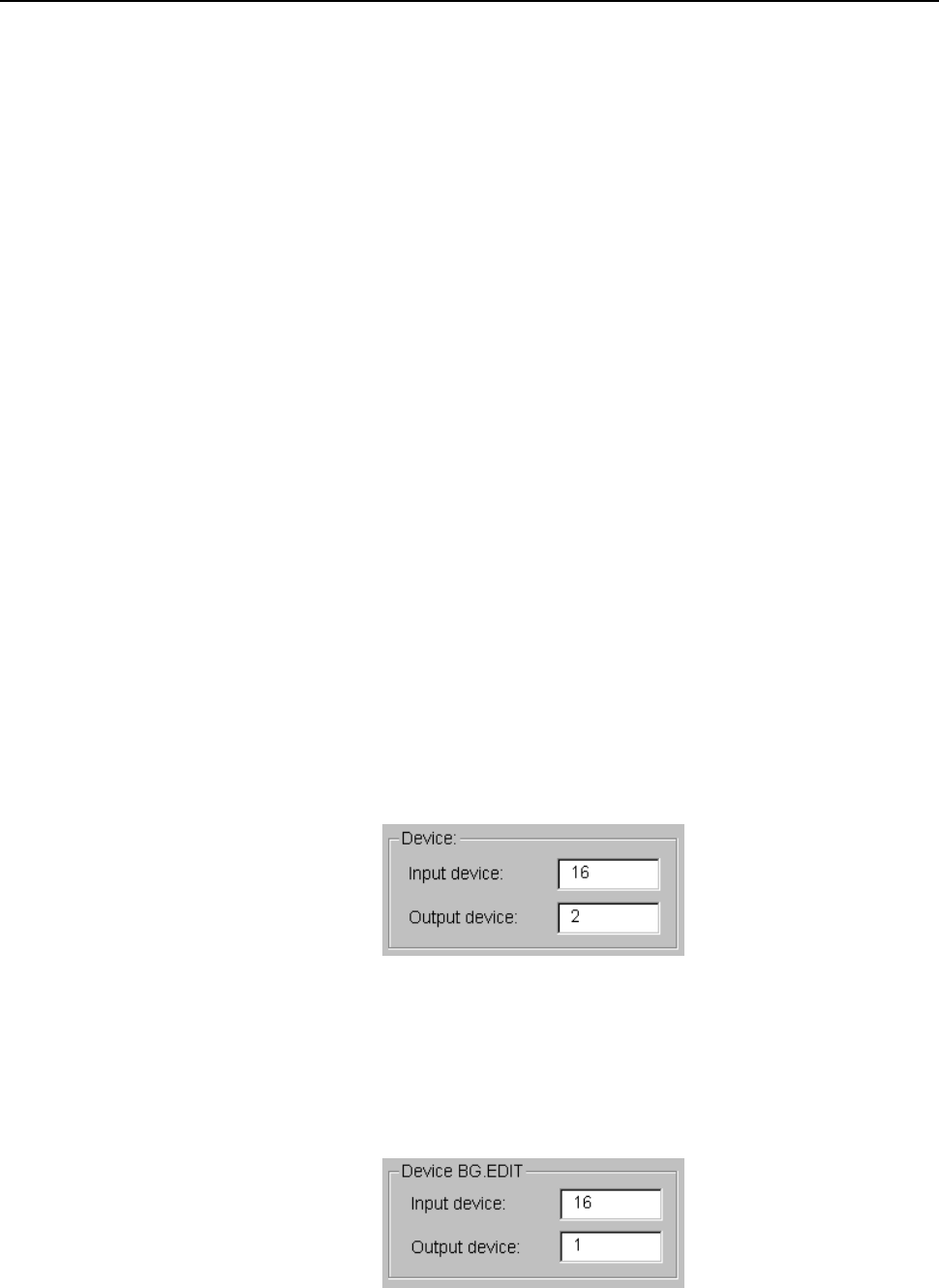

• Device (for FS15 only)

Specify the channel number of the reader/puncher interface for

foreground editing.

For details of the channel numbers that can be specified, see the

parameter description for the CNC being used.

• Device BG.EDIT (for FS15 only)

Specify the channel number of the reader/puncher interface for

background editing.

For details of the channel numbers that can be specified, see the

parameter description for the CNC being used.
