4. POSITION DISPLAY B-62994EN/02
-42-

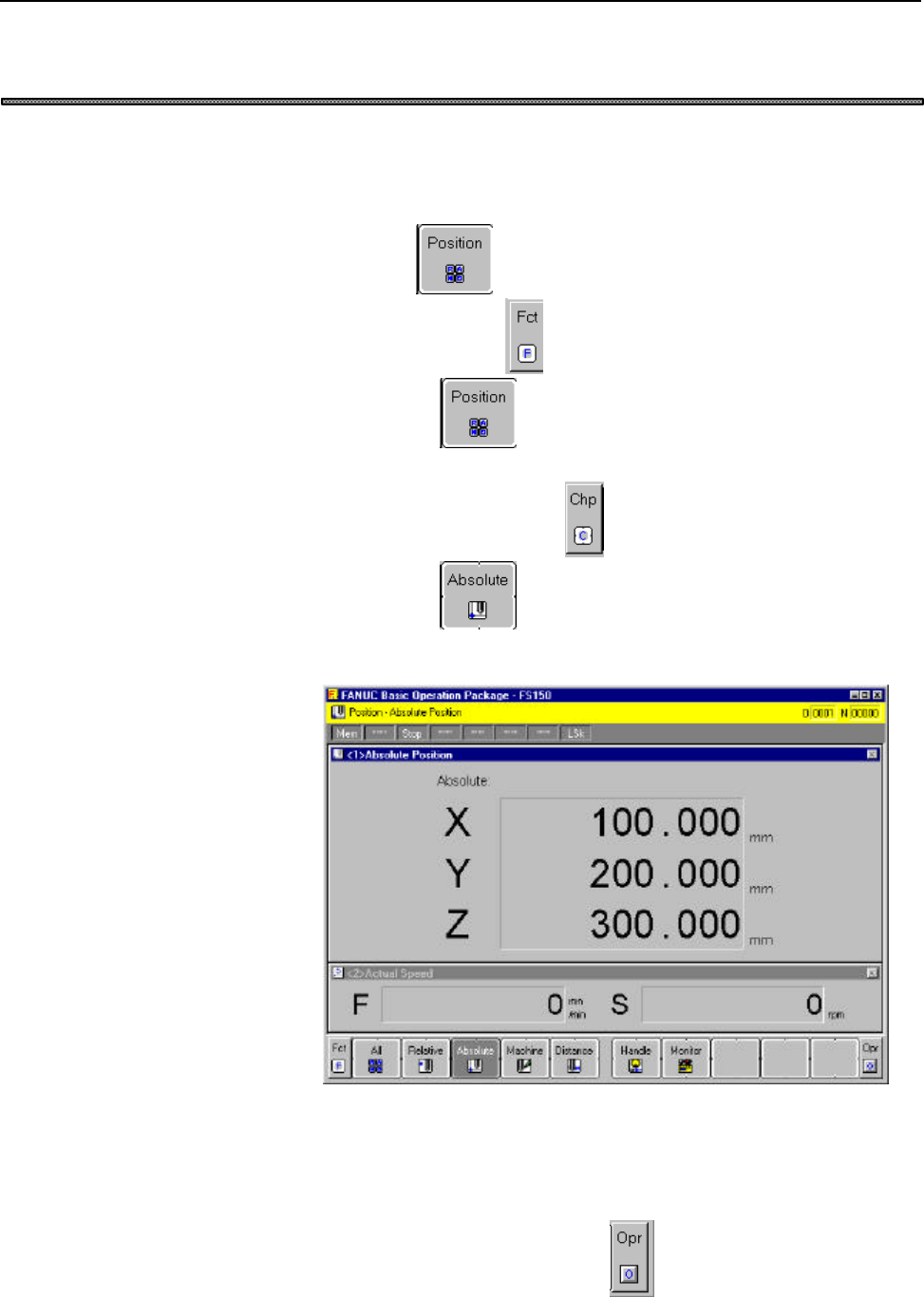

4.3 Displaying the Absolute Position
This section describes how to display the absolute position for the program
that is currently being executed.
Procedure
1. If the soft key is currently not displayed, press the function
selection soft key .
2. Press the soft key.
3. If the [Absolute Position] screen is currently not displayed, press the
chapter selection soft key .
Press the soft key.
The [Absolute Position] screen appears.
Explanation
l Absolute position screen
Displays the absolute position.
To perform an operation such as setting the floating reference position,
press the operation selection key .
