9. MILLING ANIMATION FUNCTION (OPTION) B-62994EN/02

-294-

Explanation

Editing tool data

Tool data for machining-in-progress drawing can be registered, modified,

and deleted. The tools having the T codes used in the program for which

machining-in-progress drawing is to be performed must be registered.

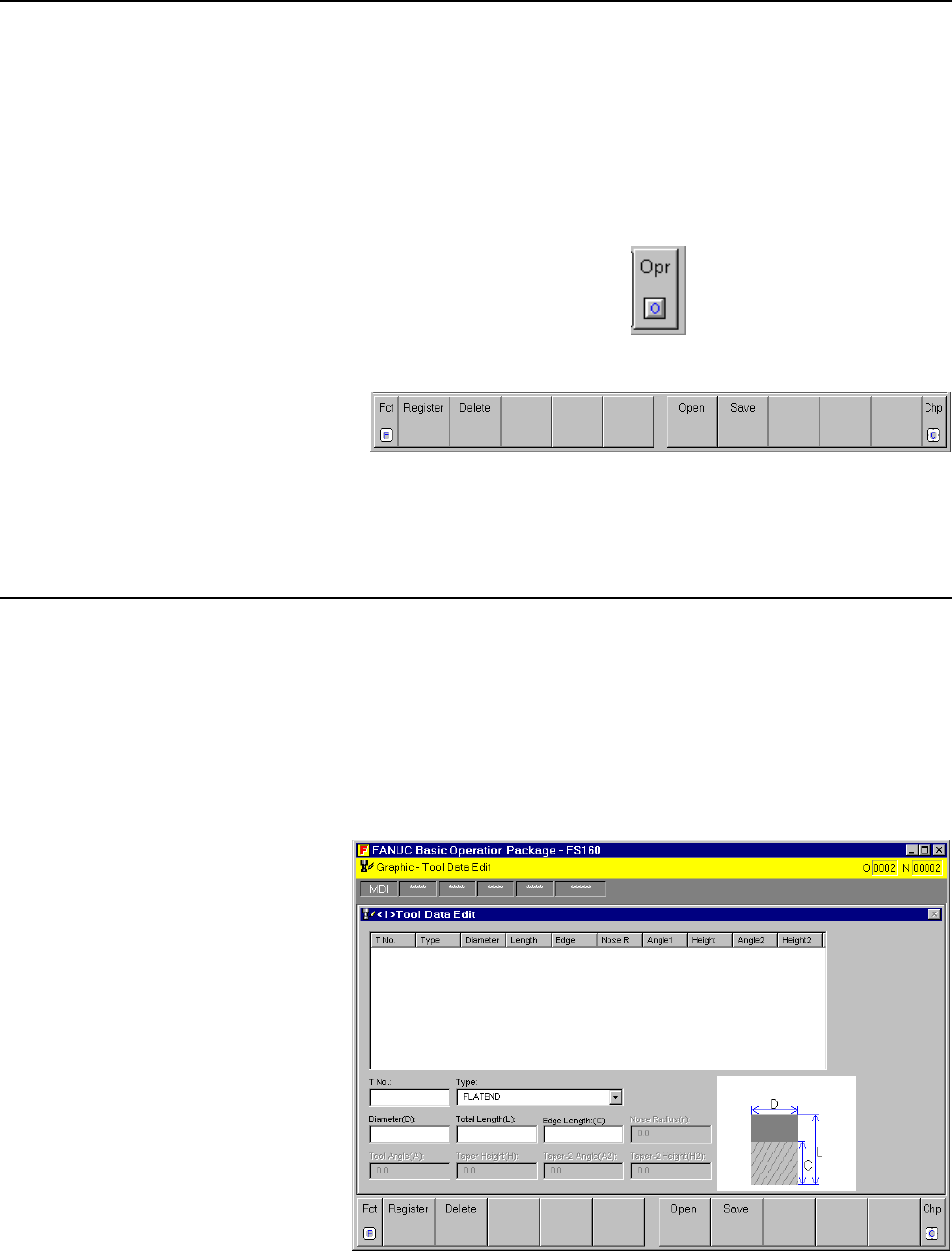

Operation soft keys

Press the operation selection key .

The operation soft keys appear.

For details of each function, see the description below.

9.1.1 Registering tools for machining-in-progress drawing

This section explains how to register tools for machining-in-progress

drawing.

Procedure

1. If the [Tool Data Edit] screen is currently not displayed, display the

[Tool Data Edit] screen by following the procedure explained in

Section 9.1, "Setting Tools for Machining-in-Progress Drawing."

2. Specify a T code and tool type, and specify the required dimension data

for the tool type.
