B-62994EN/02 7. SYSTEM
-263-
Explanation
l PMC alarm
The number of an alarm detected on the PMC is displayed together with
the corresponding message.
7.14 Setting the PMC Counter
This section describes how to set the PMC counter.

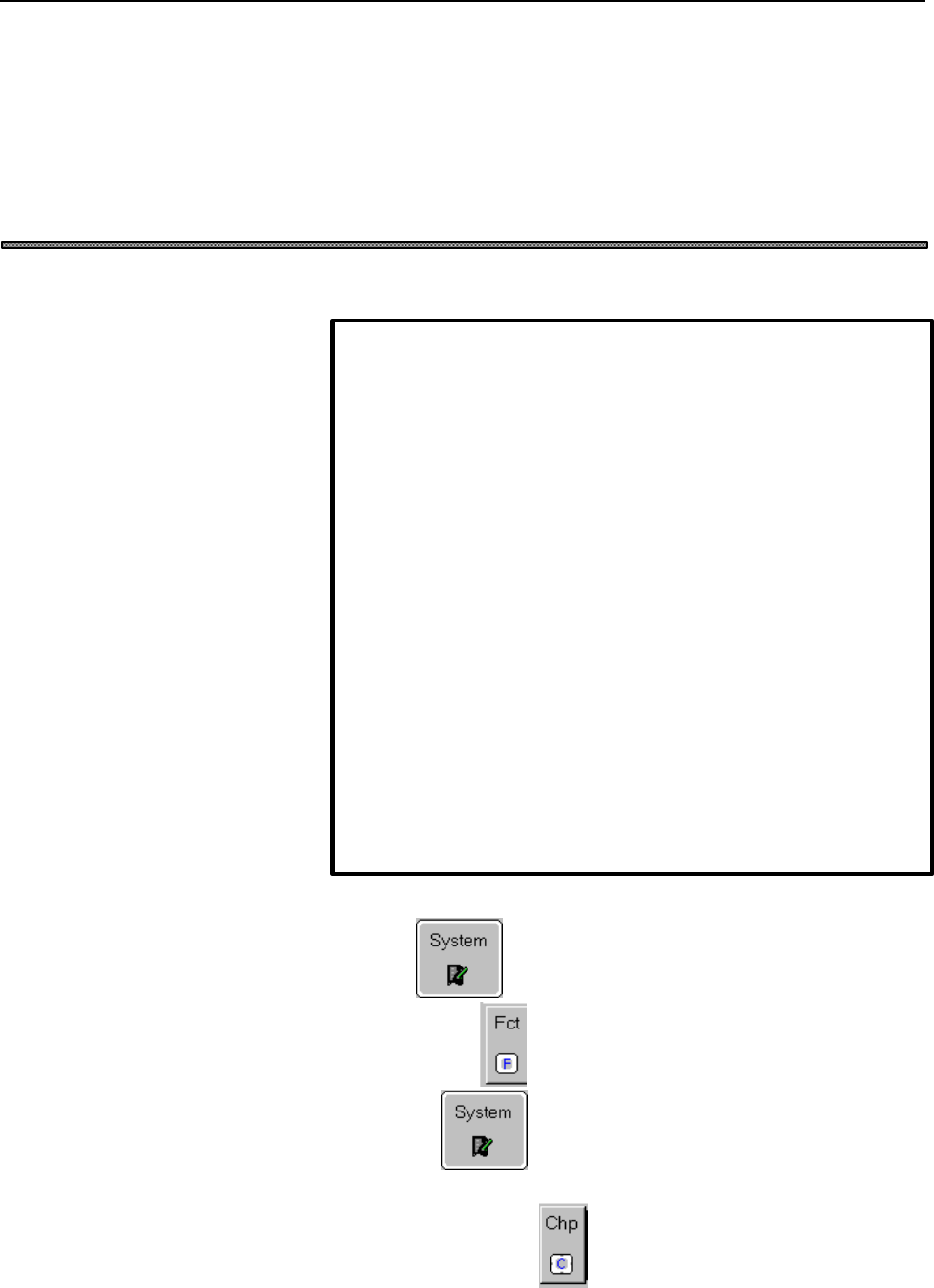

Procedure
1. If the soft key is currently not displayed, press the function
selection key .
2. Press the soft key.
3. If the [PMC Counter] screen is currently not displayed, press the
chapter selection key .
NOTE
To set the PMC counter, set the following status:
l Operation
Set either of the following statuses:
• Emergency stop
• Stopped or paused in MDI mode
l Setting data
• Enable Parameter Write.
or
l Protect key
• Released
For an explanation of how to specify the setting data, see Section 6.1,
"Setting Data." To change the CNC operating mode from the software
operator's panel, see Section 6.7, "Software Operator's Panel
Settings." For an explanation of how to release the protect key, refer
to the manual supplied by the machine tool builder.
