7. SYSTEM B-62994EN/02
-214-
(2) When the input device is a Dumb terminal, serial interface tape reader,
portable tape reader, or FANUC PPR
Procedure

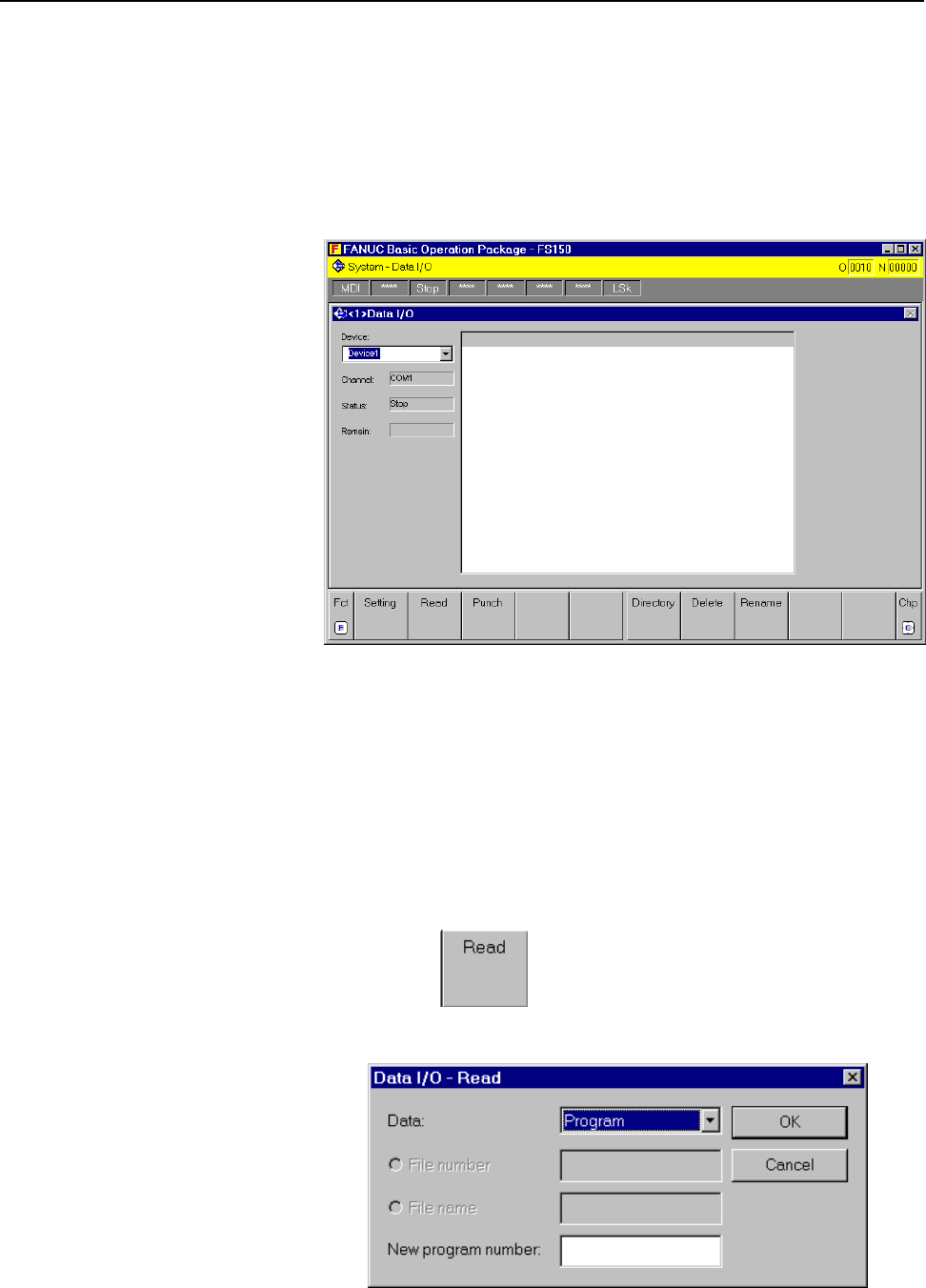

1. If the [Data I/O] screen is currently not displayed, display the [Data I/O]
screen as explained in Section 7.4 "Data Input/Output."
2. If the parameters for data input/output have not yet been set, set the
required parameters.
For an explanation of how to make this setting, see Section 7.4.1,
"Setting parameters for input/output."
3. Check that COM1 or COM2 is selected for Channel. If neither COM1
nor COM2 is selected, select COM1 or COM2, as required, for the
input device to be used.
4. If the input device is a serial interface tape reader, portable tape reader,
or FANUC PPR, load paper tape into the device.
5. Press the soft key.
The [Data I/O - Read] screen is displayed.
