B-62994EN/02 11. CUSTOMIZATION
-325-
11.1.1 Setting general options for Basic Operation Package 1
This section describes how to set the general options for Basic Operation
Package 1.
Procedure
1. If the [Setting] screen is currently not displayed, follow the procedure
shown in Section 11.1, "Customizing General Settings for Basic
Operation Package 1" to display the [Setting] screen.
Explanation

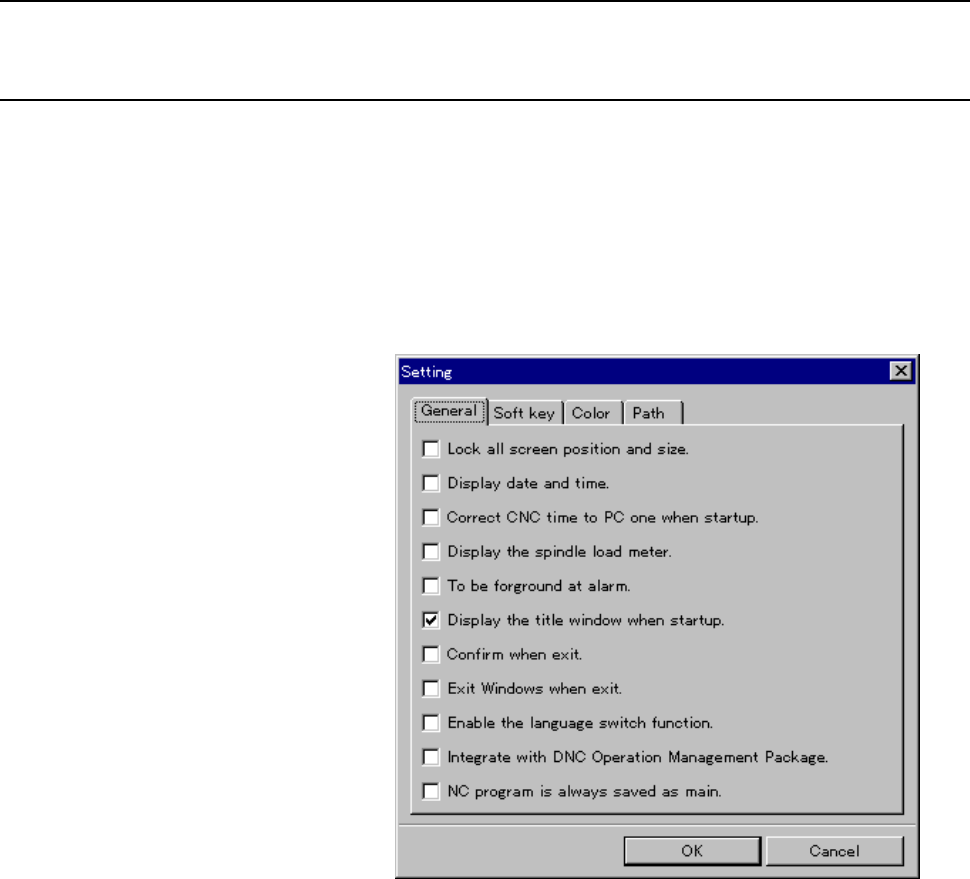

The setting items are as follows:
l Lock all screen position and size.
Selecting this item prevents the changing of the position and size of a
window.
l Display date and time.
Selecting this item causes the date and time to be displayed in the upper-
right corner of a parent window.
l Correct CNC time to PC one when startup.
Selecting this item causes the CNC time to be synchronized with the
personal computer time when the operator starts Basic Operation
Package 1.
For the FS150 CNC, this item is disabled.
