9. MILLING ANIMATION FUNCTION (OPTION) B-62994EN/02
-298-

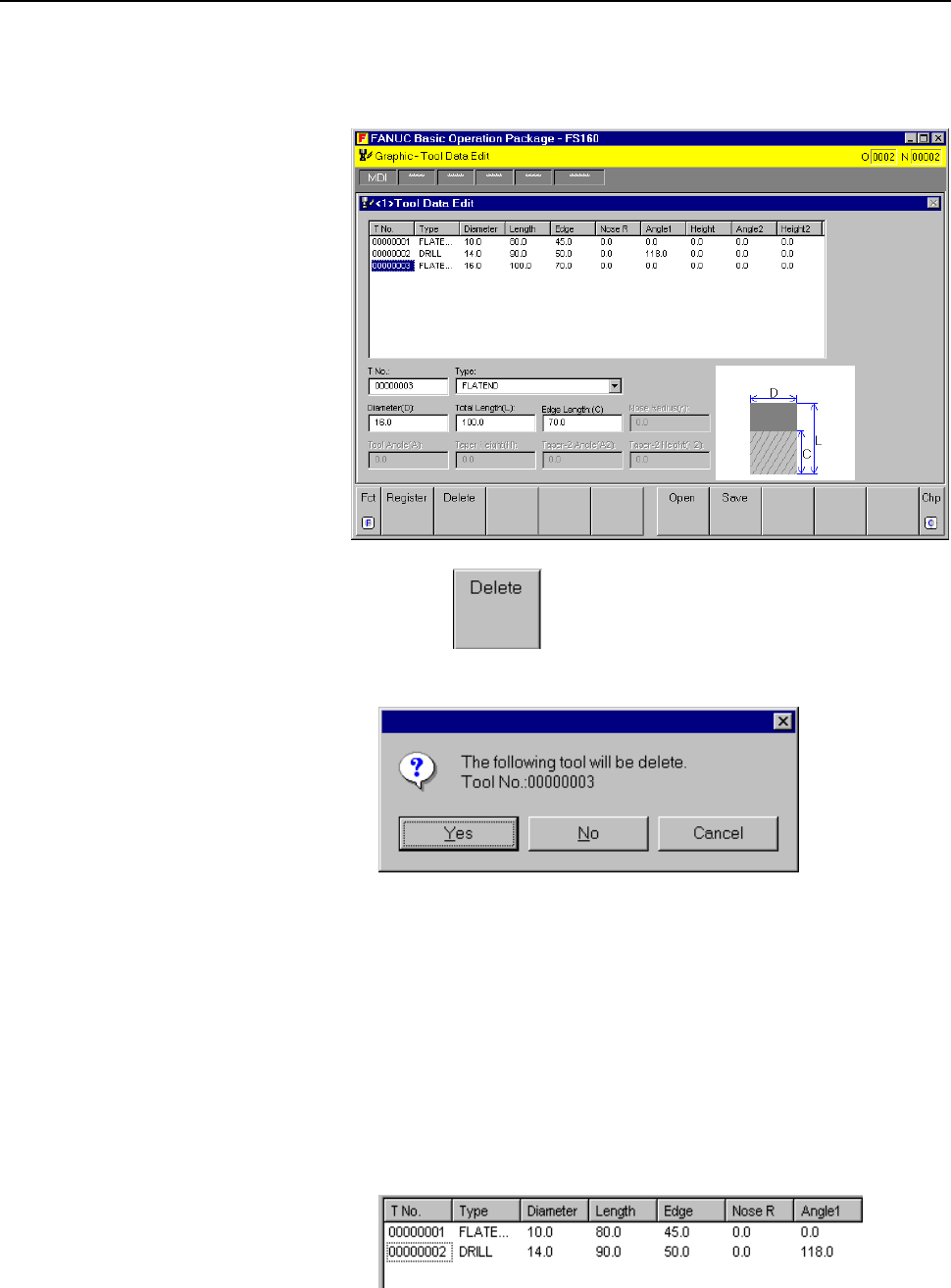

2. Specify the tool you want to delete by selecting the T code of the tool.
Multiple tools can also be specified.
3. Press the soft key.
The following message appears:
4. If the tool with the displayed tool code is to be deleted, click the <Yes>
button.
If the tool with the displayed tool code is not to be deleted, click the
<No> button.
When you have selected more than one tool, you are then asked whether
you want to delete the next tool. Once you have been asked about all
the selected tools, the specified tools are deleted.
If the <Cancel> button is clicked at any point, the displayed tool and all
subsequent tools are not deleted.
