B-62994EN/02 11. CUSTOMIZATION

-327-

11.1.2 Setting soft keys

This section describes how to set the soft keys.

Procedure

1. If the [Setting] screen is currently not displayed, follow the procedure

shown in Section 11.1, "Customizing General Settings for Basic

Operation Package 1" to display the [Setting] screen.

Explanation

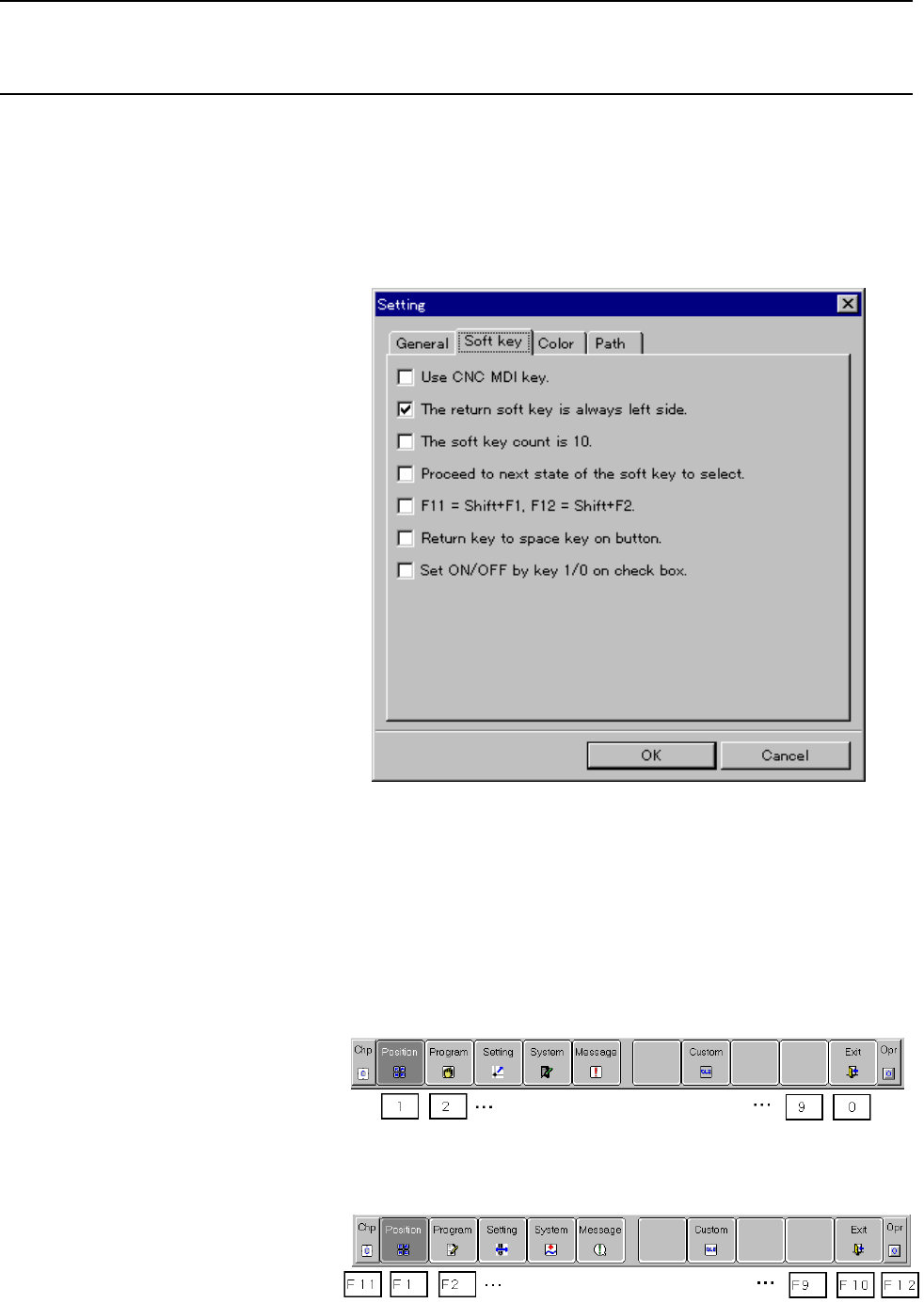

The setting items are as follows:

l Use CNC MDI key.

Selecting this item enables a function soft key to be selected using the

MDI keys that generate the equivalent key codes of [0] to [9] keys on the

numeric keypad of the full keyboard. The correspondence between the

soft keys and keypad keys is as follows:

The correspondence between the soft keys and keyboard function keys is

switched to that shown below:
