B-62994EN/02 7. SYSTEM

-231-

7.4.6 Renaming different types of data files

This section describes how to rename different types of data files.

Procedure

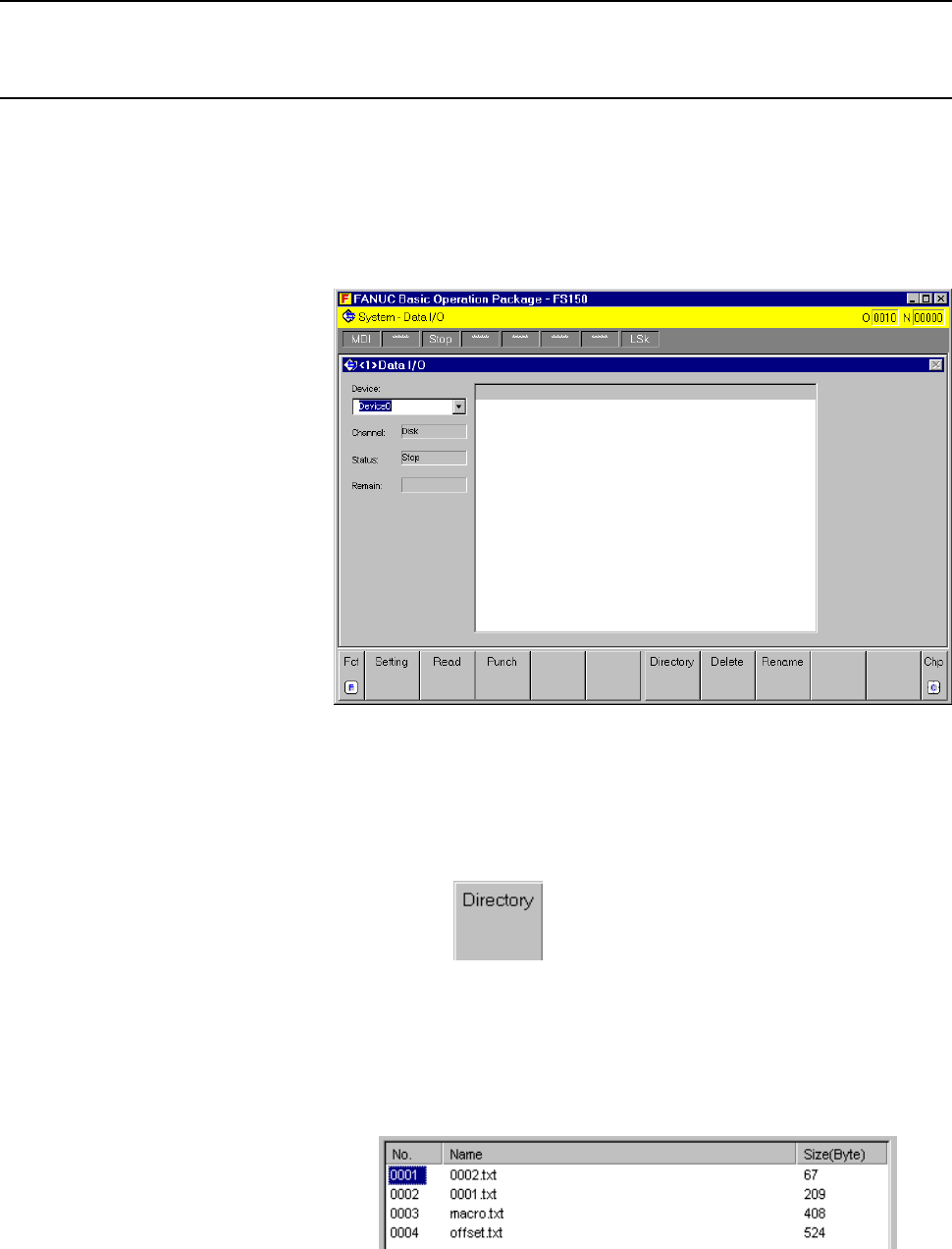

1. If the [Data I/O] screen is currently not displayed, display the [Data I/O]

screen as explained in Section 7.4 "Data Input/Output."

2. If the parameters for data input/output have not yet been set, set the

required parameters.

For an explanation of how to make this setting, see Section 7.4.1,

"Setting parameters for input/output."

3. Select a device for renaming a file as required.

4. Press the soft key.

A data file list is displayed.

If the communication device is not connected correctly, for example, an

error message is displayed. In such a case, check the communication

settings, the cable connection, power supply for the communication

device, and so forth.

5. From the list, select a file to be renamed.
