Open CNC Basic Operation Package 2 Operators manual Page 105

Operators manual
B-63924EN/01 2.STANDARD OPERATION
- 85 -

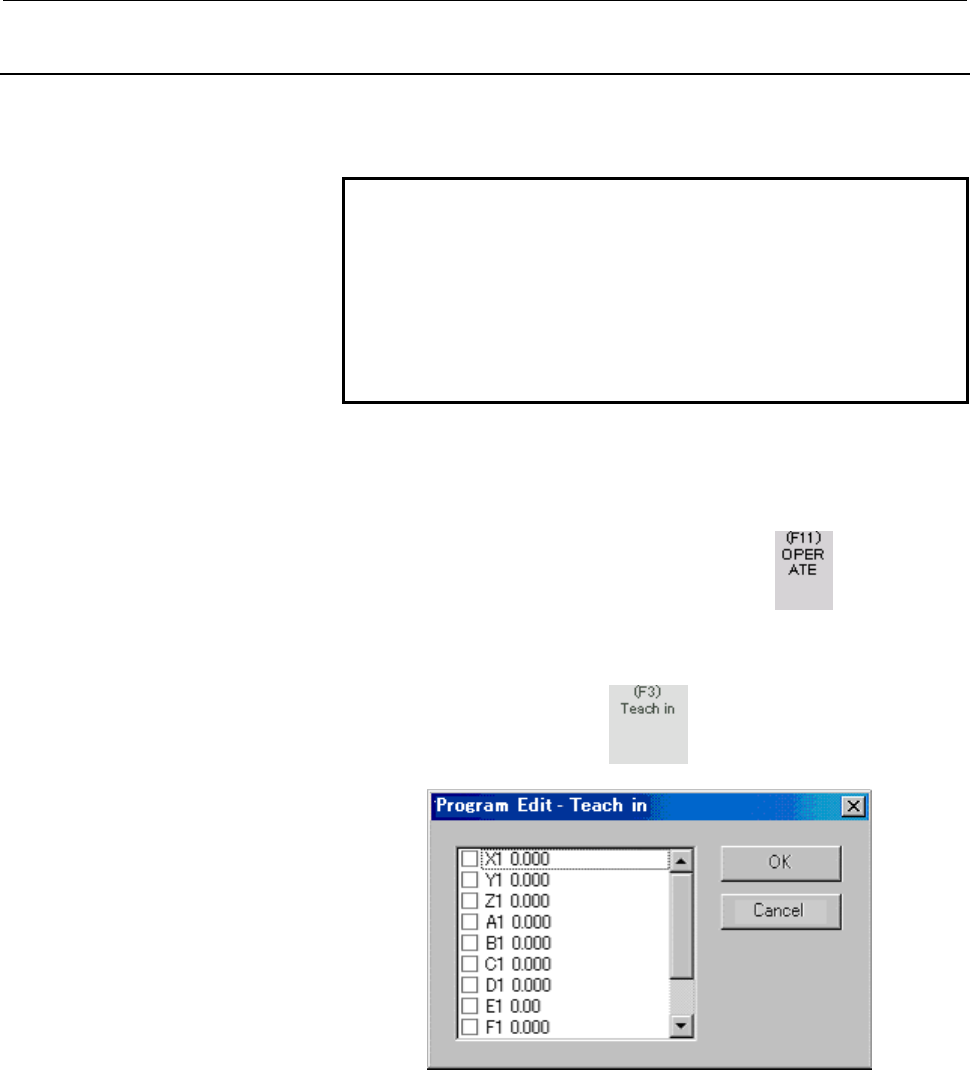

2.3.4.8 Entering a coordinate value into an NC program
The current absolute coordinate value can be entered into the NC
program being edited.
NOTE
The playback option is required to enter a
coordinate value into an NC program.
Change the CNC operating mode from the
operation status explained in Subsection 2.3.4,
"Editing an NC Program" to the following status:
- Teach in Handle mode, or
- Teach in JOG mode
Procedure
1 If the [Program Edit] screen is currently not displayed, display
the [Program Edit] screen as described in Subsection 2.3.4,
"Editing an NC Program".
2 Press the display/operation switching key
to display the
operation keys.
3 Move the cursor to a position where a coordinate value is to be
entered.
4 Press the operation key
to display the [Program Edit -
Teach in] screen.
5 Select the axis for which a coordinate value is to be entered, then
click the <OK> button. The selected coordinate value is
inserted into the NC program.
