Open CNC Basic Operation Package 2 Operators manual Page 224

Operators manual
2.STANDARD OPERATION B-63924EN/01
- 204 -

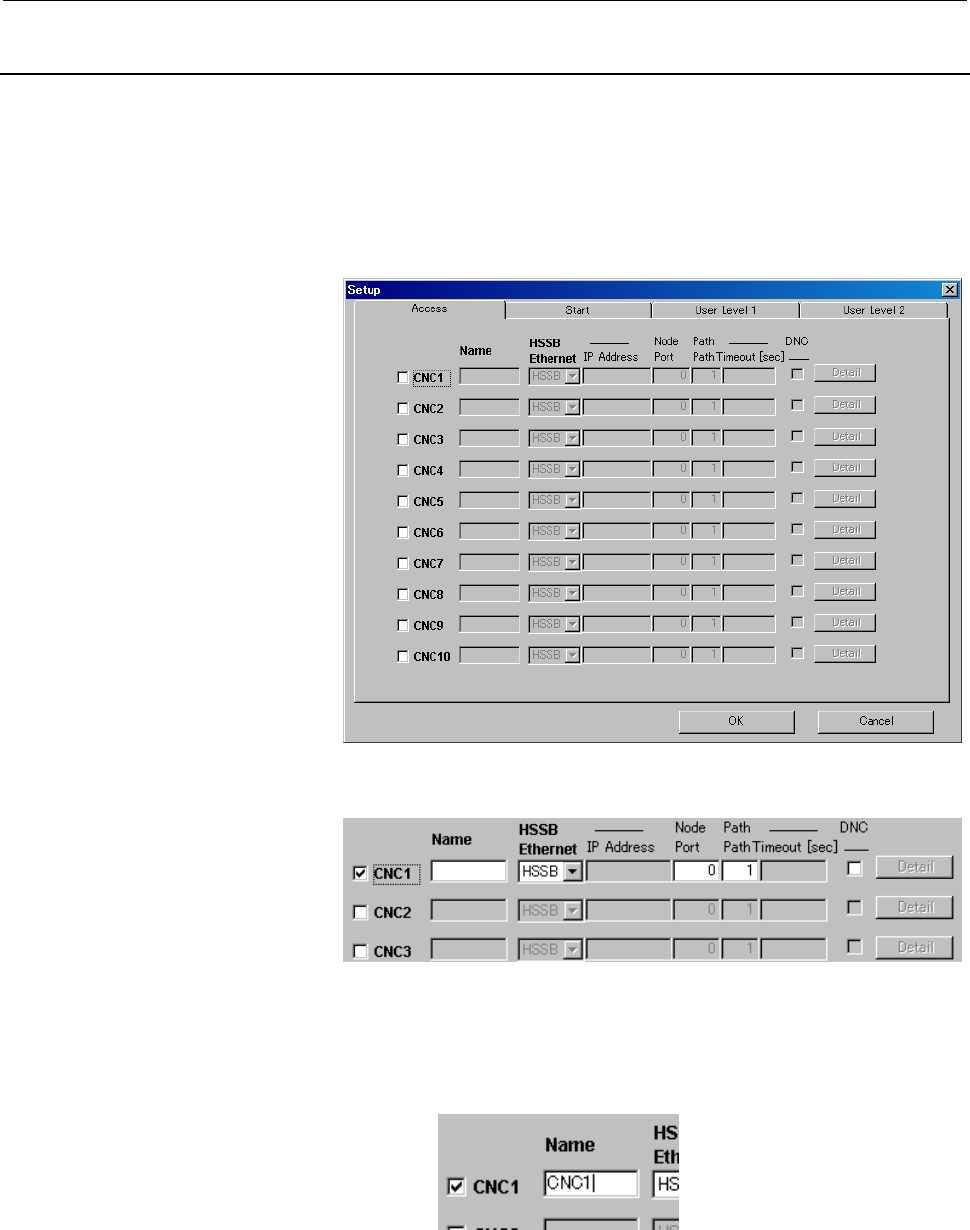

2.7.2.1 Setting a CNC to be connected
The method of specifying a CNC to be connected is described below.
Procedure
1 If the [Setup] screen is currently not displayed, display the
[Setup] screen as described in Subsection 2.7.2, "Setting Basic
Operation Package 2".
2 Select the [Access] tab.
3 Check a number to be connected. The setting fields of the
number become capable of being input.
4 In the name field, set an arbitrary character string that can
identify a CNC to be connected. This name is indicated in the
connection destination switching data on the status bar, and in
messages for all connection destinations such as alarm messages
and operator messages.
