Open CNC Basic Operation Package 2 Operators manual Page 186

Operators manual
2.STANDARD OPERATION B-63924EN/01
- 166 -

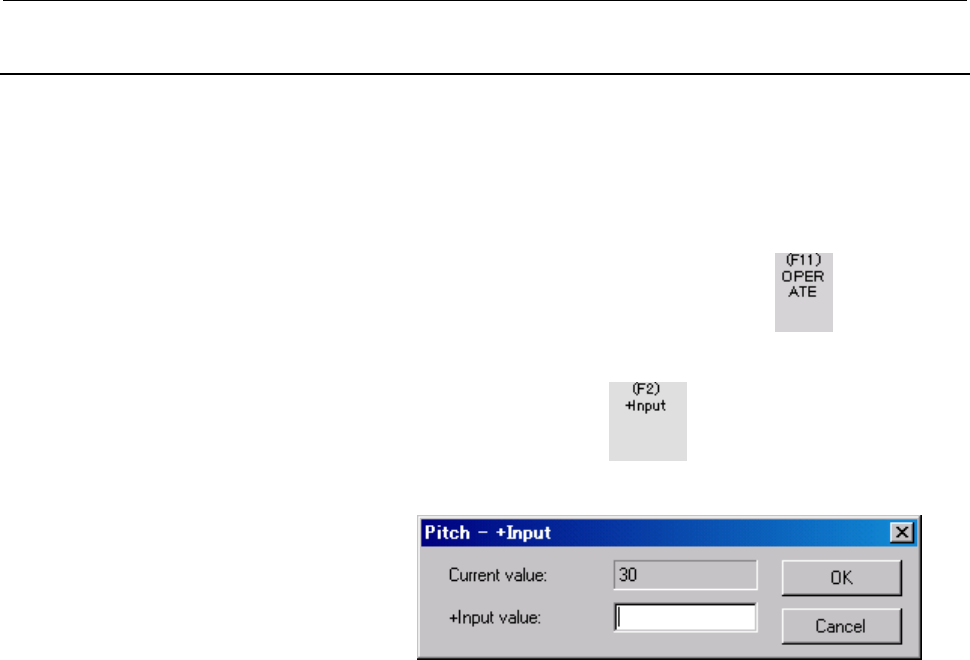

2.5.5.2 Entering an increment for pitch error compensation data
An increment can be entered for pitch error compensation data.
Procedure
1 If the [Pitch] screen is currently not displayed, display the [Pitch]
screen as described in Subsection 2.5.5, "Setting Pitch Error
Compensation Data".
2 Press the display/operation switching key
to display the
operation keys.
3 Select pitch error compensation data to be set.
4 Press the operation key
to display the [Pitch - +Input]
screen.
5 Enter an incremental value (increment) then click the <OK>
button. The value obtained by adding the entered increment to
the current value is set.
