2.STANDARD OPERATION B-63924EN/01
- 92 -
2.3.5.2 Replacing a character string in an MDI program
In the MDI program being edited, a specified character string can be
found and replaced with another character string.
Procedure
1 If the [MDI Program] screen is currently not displayed, display
the [MDI Program] screen as described in Subsection 2.3.5,
"Editing an MDI Program".
2 Press the display/operation switching key
to display the
operation keys.
3 Press the operation key
to display the [MDI Program -
Replace] screen.

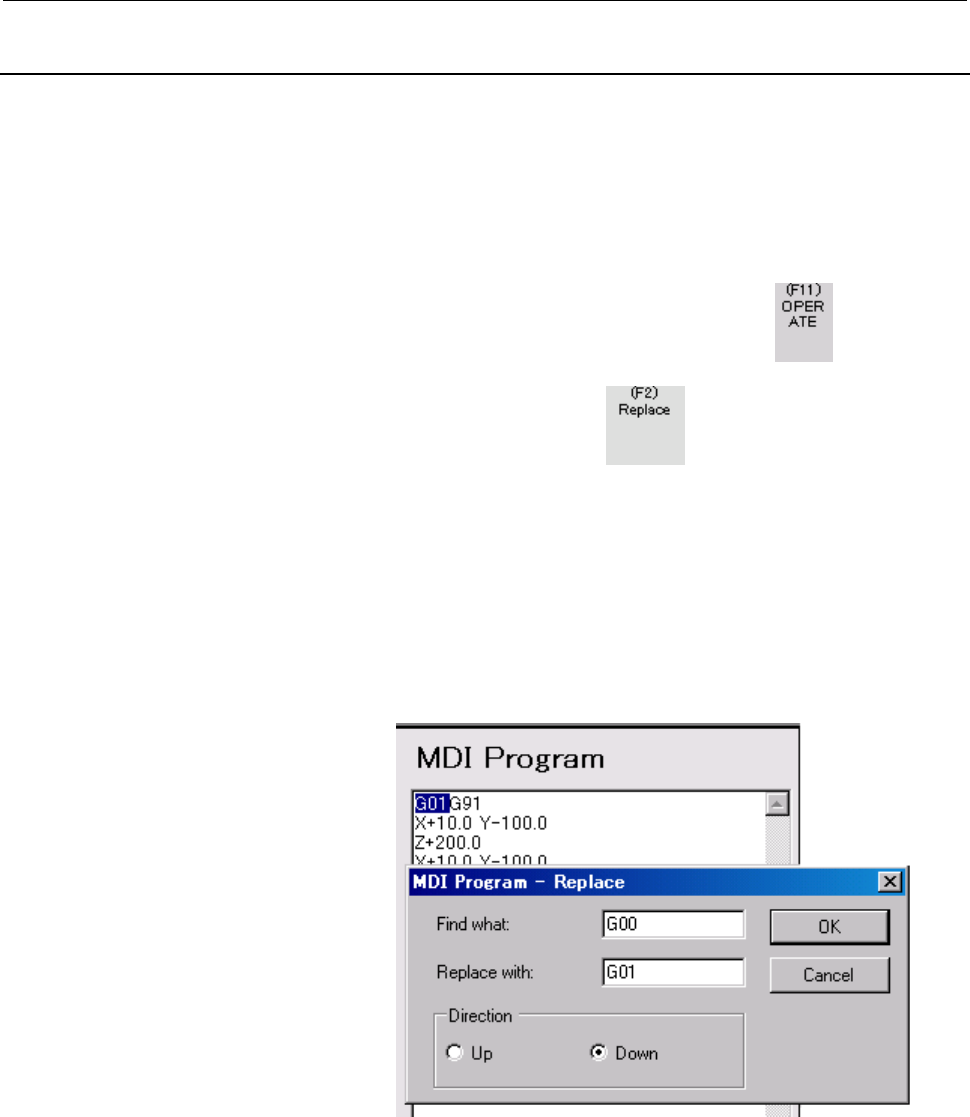

4 Enter a character string to be replaced and a replacing character
string, then select a search direction (Up or Down). Click the
<OK> button.
If the character string to be replaced is found, the character string
is converted to the replacing character string, which is displayed
in reverse video.
If the character string to be replaced is not found, the message
"The character string could not be found." is displayed.
↑ Example where the specified character string was found
