B-63924EN/01 2.STANDARD OPERATION
- 129 -
Procedure

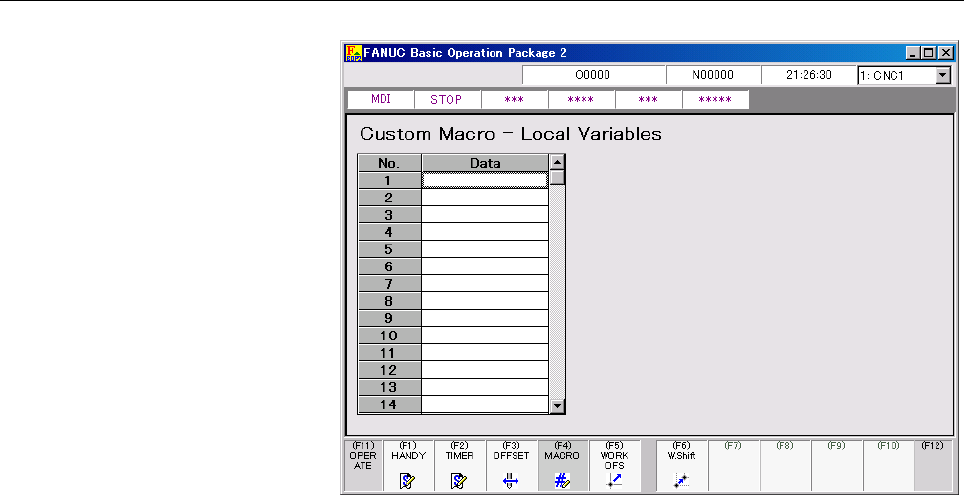

1 If the [Custom Macro] screen is currently not displayed, display
the [Custom Macro] screen by pressing the [SETTING] function
key and [MACRO] submenu key.
2 Select data to be set.
3 Enter a desired value through the keyboard or MDI panel.
Press the [Enter] key on the keyboard, or the [INPUT] key on the
MDI panel to set the input value with the CNC.
Press the [Esc] key on the keyboard, or the [CAN] key on the
MDI panel to cancel the input.
To enter an increment, see Subsection 2.4.4.3, "Entering an
increment for a custom macro variable". To enter a relative
coordinate value, see Subsection 2.4.4.4, "Entering a counter
value for a custom macro variable".
