2.5.8 Setting a PMC Counter
The value of a PMC counter can be displayed and set.
This screen can be displayed by pressing the [SYSTEM] function key
and [PMC Counter] submenu key.

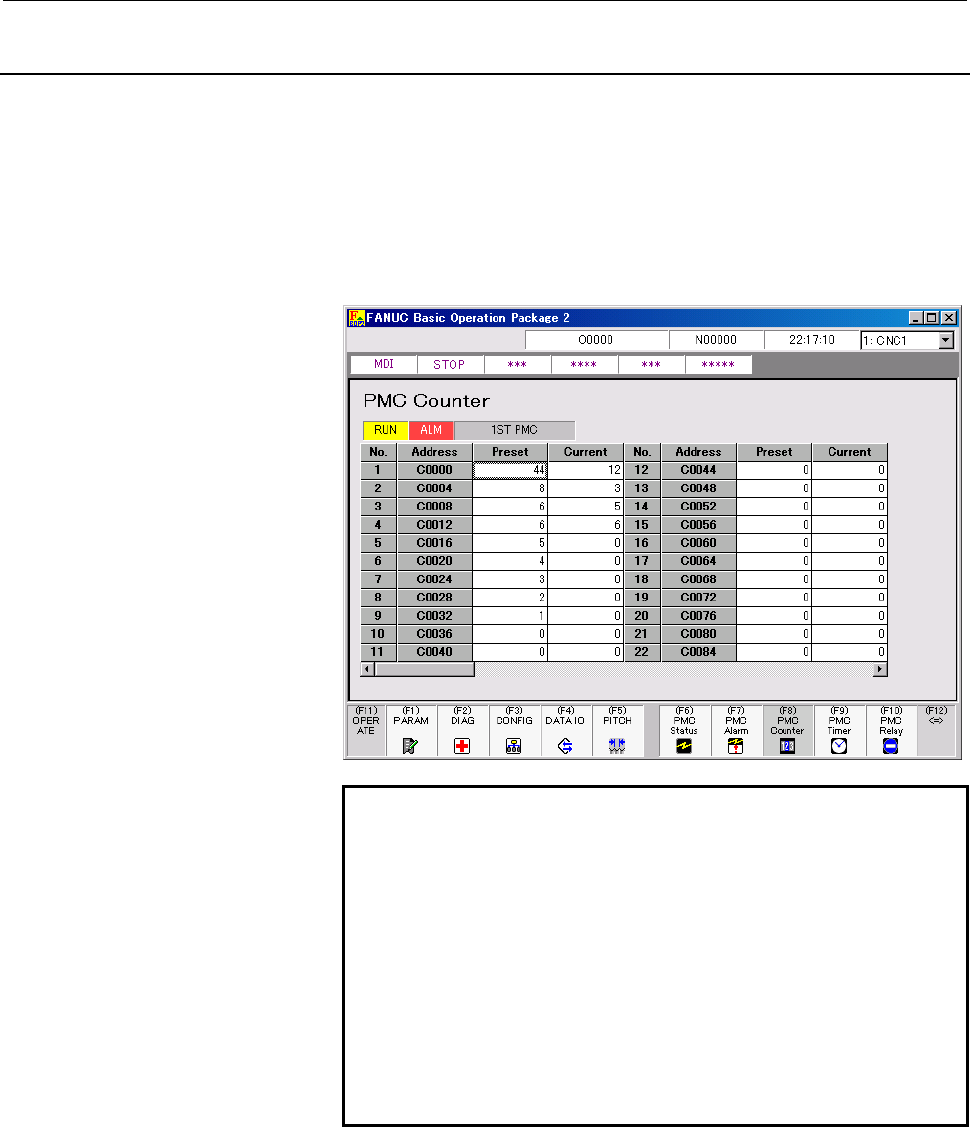

• PMC counter
The address, preset value, and current value of a PMC counter
are displayed. Set a value as required.
NOTE
To set a PMC counter, set the following status:
• Operation
- Emergency stop, or
- Stopped or paused in MDI mode
• Protect key
- Released
For the release of the protect key, refer to the
relevant operator's manual of the machine tool
builder.
Procedure
1 If the [PMC Counter] screen is currently not displayed, display
the [PMC Counter] screen by pressing the [SYSTEM] function
key and [PMC Counter] submenu key.
2 Move the cursor to the field where a value is to be set.
3 Enter a value to be set through the keyboard or MDI panel.
