2.STANDARD OPERATION B-63924EN/01
- 202 -
2.7.2 Setting Basic Operation Package 2
The method of setting for Basic Operation Package 2 connection and
screen configuration setting is described below.
For this setting, the password is required.
Procedure

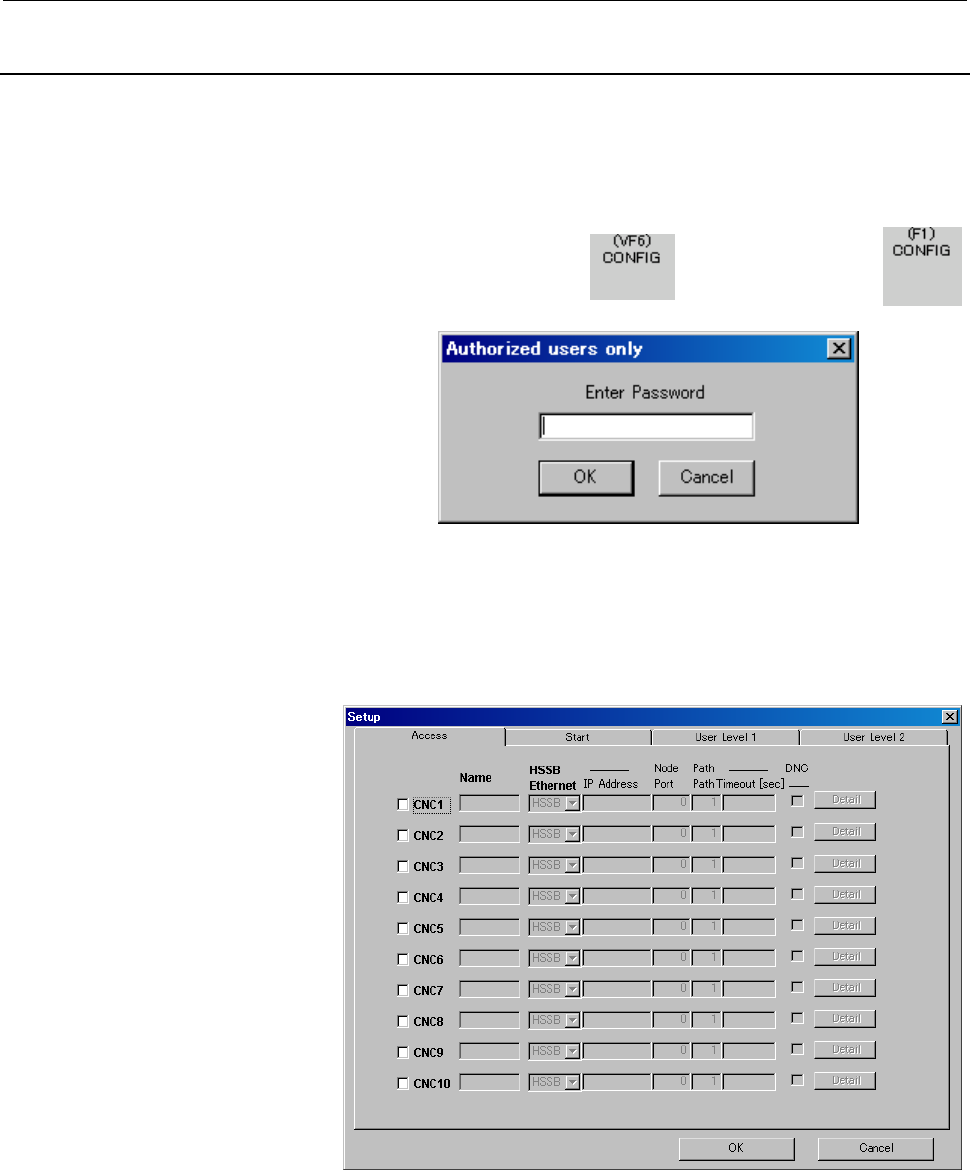

1 Press the function key
and the submenu key .
The [Enter password] screen is displayed.
2 Enter the password then click the <OK> button. The [Setup]
screen is displayed. For details, see Subsection 2.7.2.1, "Setting
a CNC to be connected", Subsection 2.7.2.2, "Changing the user
level and password", and Subsection 2.7.2.3, "Setting for each
user level".
