Open CNC Basic Operation Package 2 Operators manual Page 147

Operators manual
B-63924EN/01 2.STANDARD OPERATION
- 127 -
2.4.3.6 Clearing all tool offset data to zero
All set tool offset data can be cleared to 0.
NOTE
This command is valid when bit 4 of parameter
No. 3205 is set to 0.
Procedure
1 If the [Tool Offset] screen is currently not displayed, display the
[Tool Offset] screen as described in Subsection 2.4.3, "Setting
Tool Offset".
2 Press the display/operation switching key
to display the
operation keys.

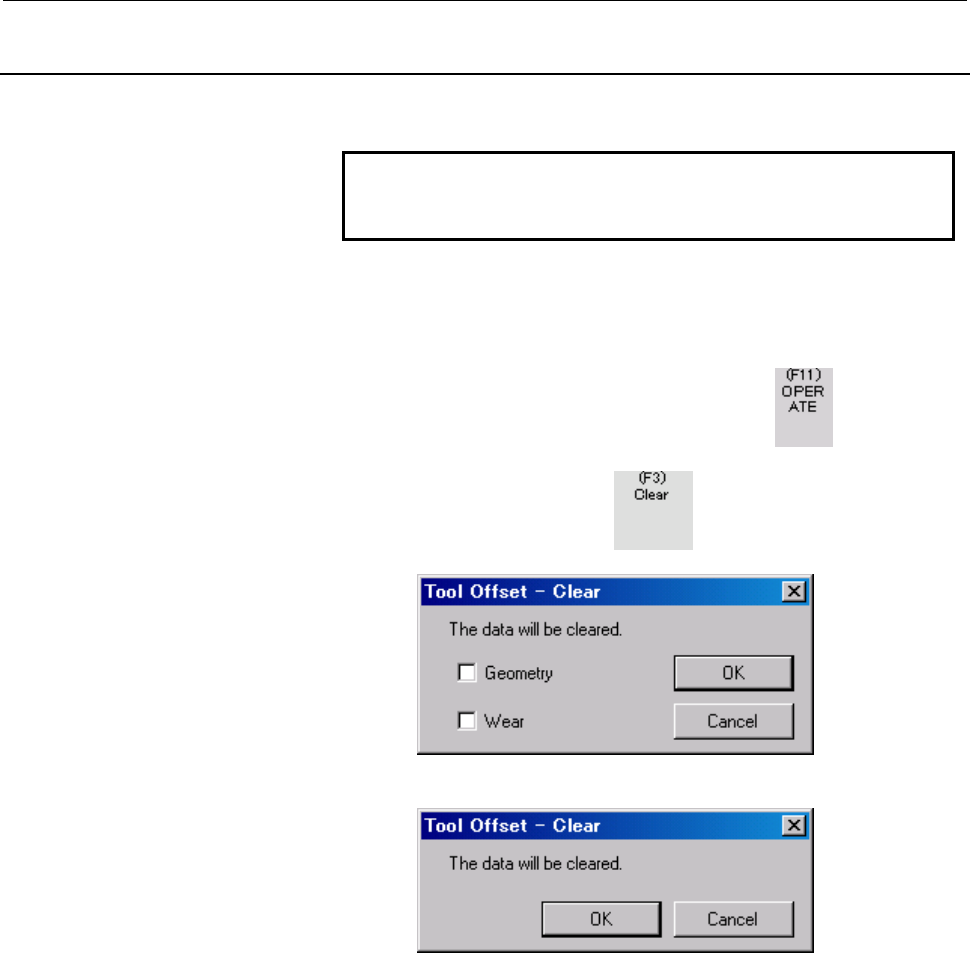

3 Press the operation key
to display the [Tool Offset -
Clear] screen.
↑When a distinction is made between geometry offset and wear offset
↑In cases other than the above
4 Click the <OK> button. All selected tool offset data is cleared
to zero.
