Open CNC Basic Operation Package 2 Operators manual Page 242

Operators manual
3.CUSTOMIZATION B-63924EN/01
- 222 -

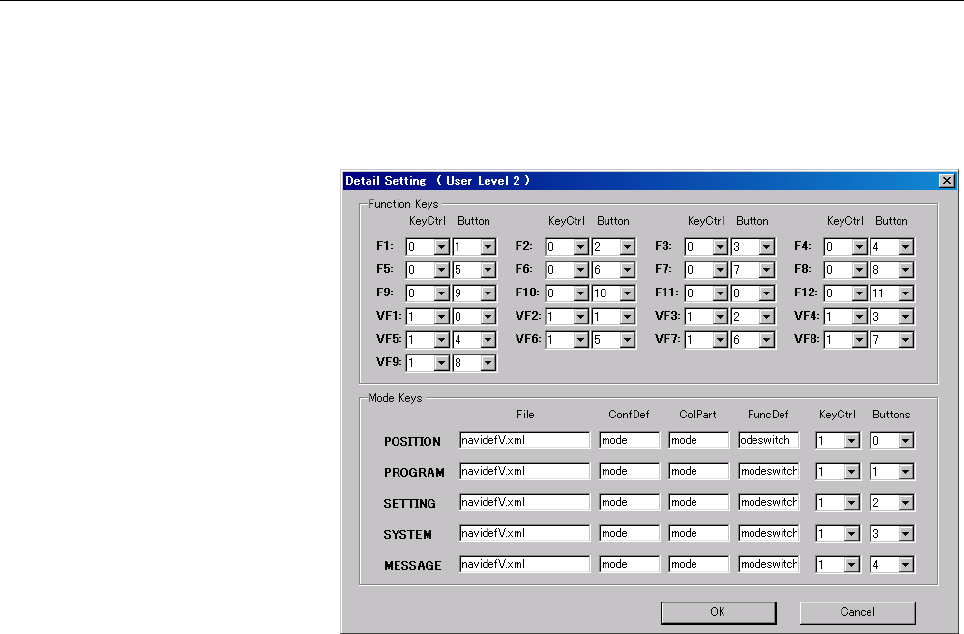

• <Detail Setting> button
Clicking this button opens the following screen. This screen
allows you to specify what action is to take place when a
function key or a mode key (on the MDI panel) is pressed.
• Function keys
This item allows you to associate each of the function keys on
the CNC and those ([F1] to [F12] and [Ctrl]+[Alt]+[F3] to [F11])
on the PC keyboard with the processing that is performed when a
particular key control button displayed on the screen is clicked.
You specify a key control number (0 to 3) and a button number
(0 or greater) in the key control. Note that unlike the function
keys on the PC, the soft keys in a horizontal array on the CNC
are arranged in the sequence: [F11], [F1], [F2], ..., [F10], and
[F12]. In addition, [Ctrl]+[Alt]+[F3] corresponds to VF1,
[Ctrl]+[Alt]+[F4] corresponds to VF2, and so on, that is,
[Ctrl]+[Alt]+[F11] corresponds to VF9. They correspond to the
soft keys on the MDI panel, which correspond to the soft keys in
a vertical array.
