3.CUSTOMIZATION B-63924EN/01
- 228 -
Value Type Summary
“invisible” string Specifies to hide keys.
“push” string
Specifies pushbuttons. Only the off state of
the display and action definitions is used.
“toggle” string
Specifies toggle buttons. Both the on and off
states exist.
If buttons are set up for the group sub mentioned in Subsection 3.3.2,
grouping is as shown below.

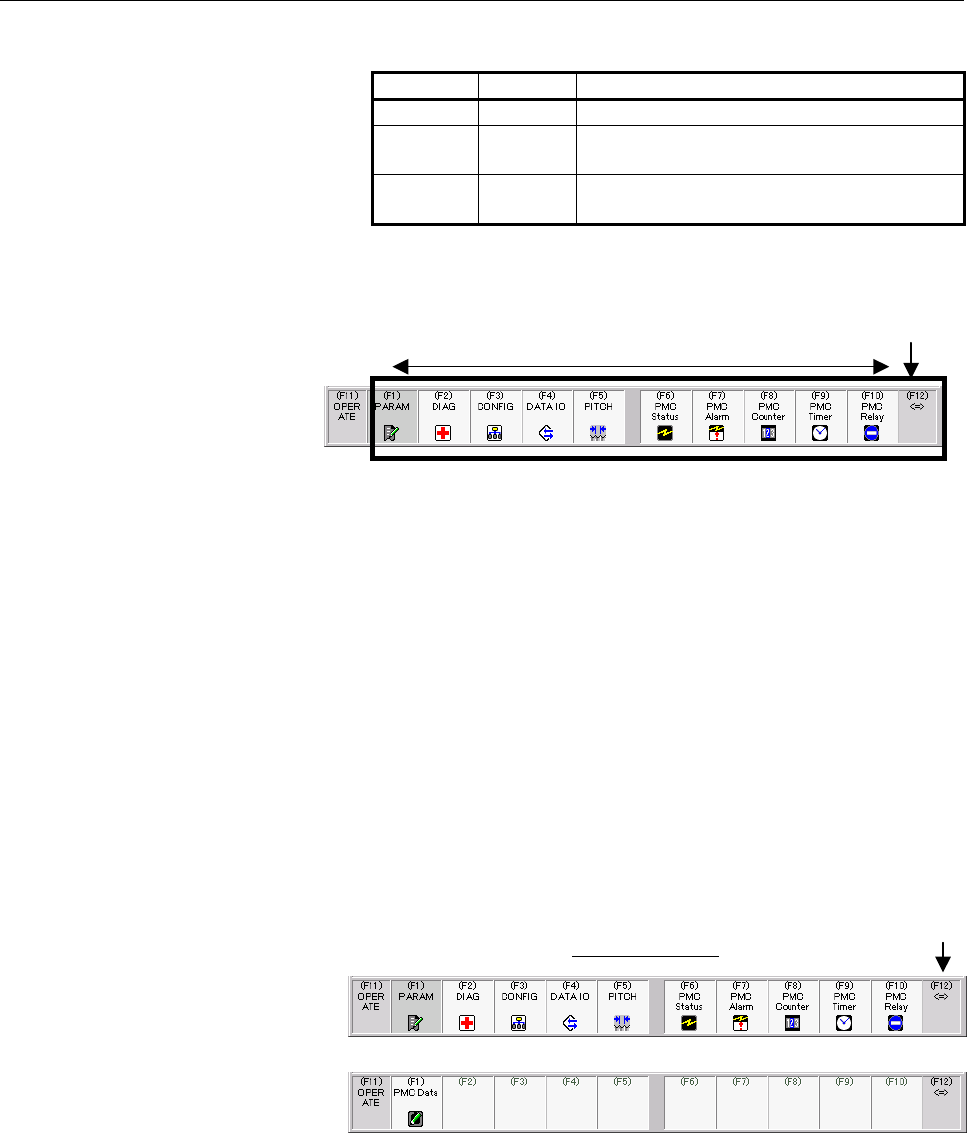

In the above figure, the button [PARAM], whose index attribute in the
button tag is “0”, is at the leftmost position among all general buttons
because its pointer attribute in the selbtn tag is “0”. In addition,
because the selected attribute in the colbtn tag is “0”, the button
[PARAM], whose index attribute in the button attribute is “0”, is
colored with the ON setting color and stays selected. For general
toggle buttons, one of them is always kept in the ON state. In other
words, when one toggle button is clicked to ON, the toggle button that
has already been ON is automatically reset to OFF.
Clicking a select button can change the setting of general buttons
(assign the button tag). In the colbtn tag, it is possible to define more
button tags than the number of buttons actually set up in a group.
The extra button tags are assigned to general buttons by clicking the
select button. In the above example, 11 button tags are defined for
10 general buttons. The following figures show how button displays
change when the select button is clicked.
In this case, a general button whose index attribute in the button tag is
higher is selected when the select button is clicked because its seltype
attribute in the selbtn tag is upcycle. In addition, as many button tags
as the number of general buttons are specified because the step
attribute in the selbtn tag is “0”. The step attribute can range
between 0 and 15. If it is nonzero, the assignment of as many button
tags as the step attribute value is re-set.
Select button
General buttons
Select button
Initial display state
Display after the select button is clicked
