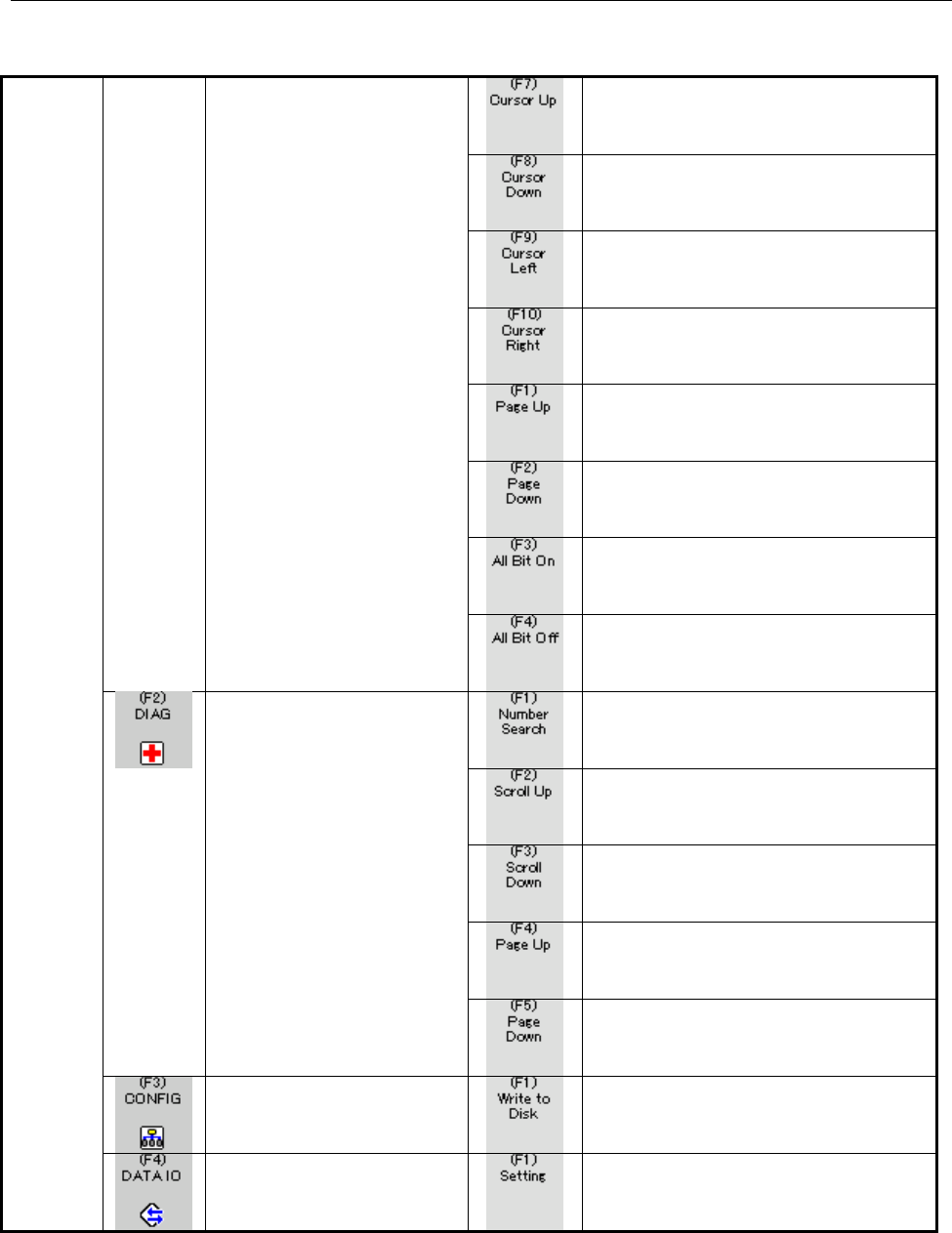

Open CNC Basic Operation Package 2 Operators manual Page 47

Operators manual
B-63924EN/01 2.STANDARD OPERATION
- 27 -
Moves the cursor to the previous
parameter number.
Moves the cursor to the next parameter
number.
Moves the cursor to the left-hand bit.
Moves the cursor to the right-hand bit.
Displays the previous page.
Displays the next page.
Turns on all bits of bit-type data.
Turns off all bits of bit-type data.
Displays a specified number.
Moves the screen display to the previous
number.
Moves the screen display to the next
number.
Displays the previous page.
Diagnosis
Displays the next page.
System Configuration
Writes system configuration data to disk.
Data I/O
Makes a setting for input/output.
Previous page
Next page
