Open CNC Basic Operation Package 2 Operators manual Page 108

Operators manual
2.STANDARD OPERATION B-63924EN/01
- 88 -
2.3.4.11 Copying character strings from an NC program
Selected character strings can be copied from the NC program being
edited.
Procedure
1 If the [Program Edit] screen is currently not displayed, display
the [Program Edit] screen as described in Subsection 2.3.4,
"Editing an NC Program".
2 Press the display/operation switching key
to display the
operation keys.

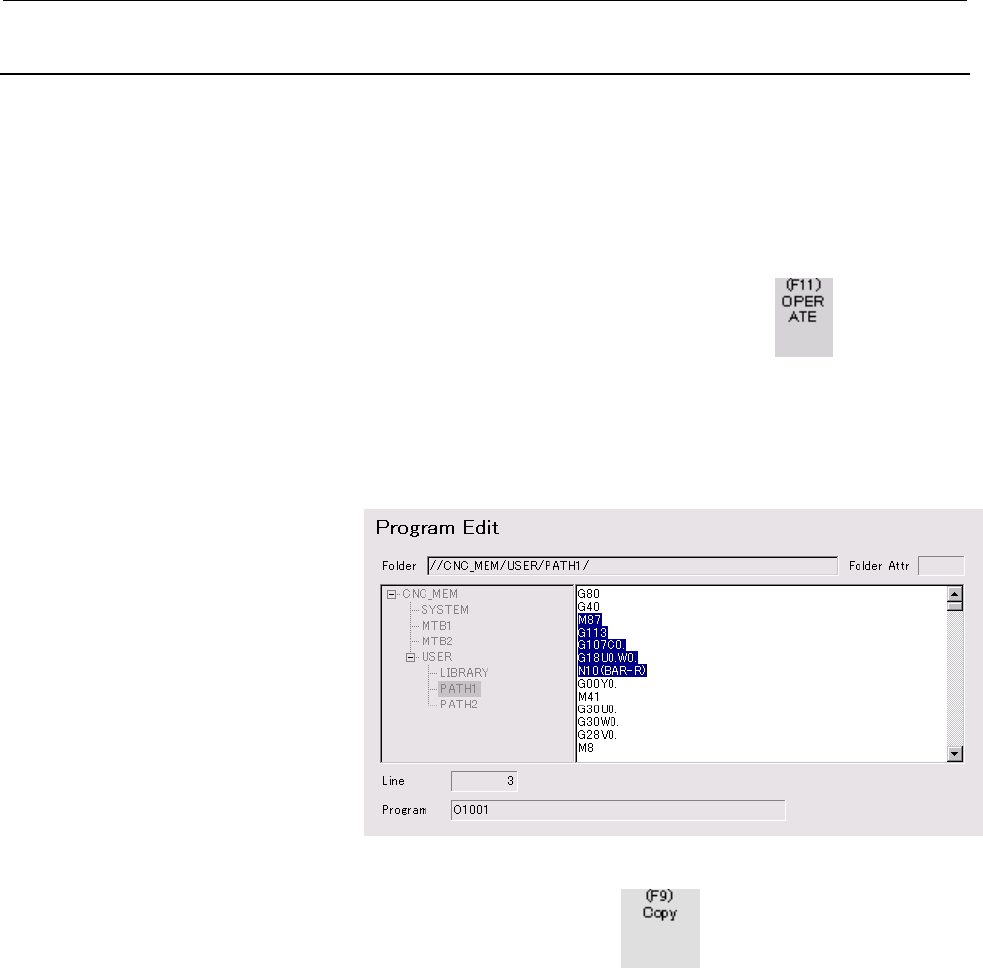

3 Select a copy range.
When using a pointing device such as a mouse, select a copy
range by dragging the pointing device. When using the
keyboard, select a copy range by using the [Shift] key (or
[SHIFT] key on the MDI panel) + cursor keys.
↑ The portion displayed in reverse video is selected.
4 Press the operation key to copy the selected range.
No change is made to the screen display.
