Open CNC Basic Operation Package 2 Operators manual Page 143

Operators manual
B-63924EN/01 2.STANDARD OPERATION
- 123 -
2.4.3.2 Finding a tool offset data number
The tool offset data of a specified number can be displayed.
Procedure
1 If the [Tool Offset] screen is currently not displayed, display the
[Tool Offset] screen as described in Subsection 2.4.3, "Setting
Tool Offset".
2 Press the display/operation switching key
to display the
operation keys.

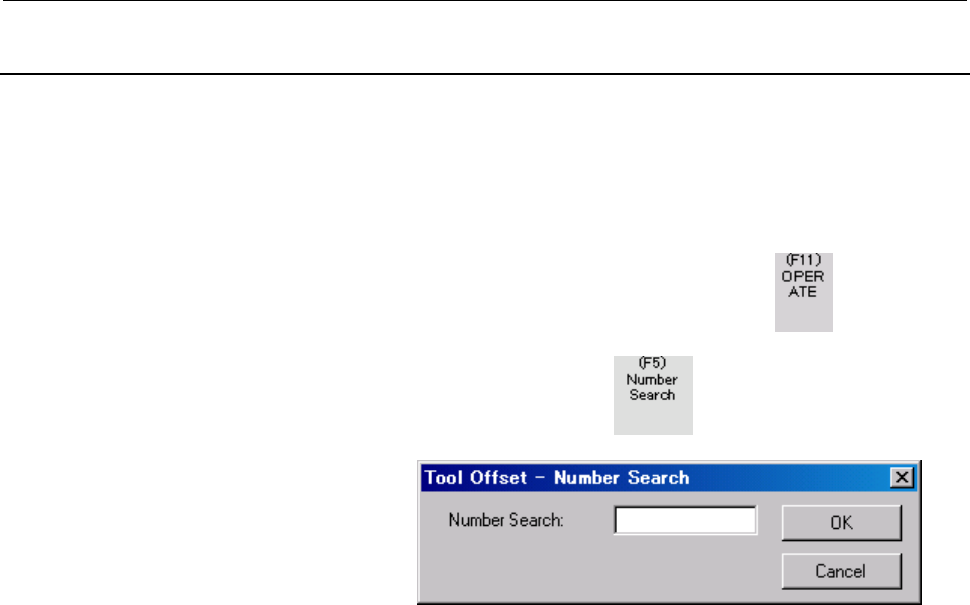

3 Press the operation key
to display the [Tool Offset -
Number Search] screen.
4 Enter a number to be found, then click the <OK> button. The
tool offset data of the specified number is displayed, and the
cursor moves to the data.
