B-63924EN/01 2.STANDARD OPERATION
- 205 -

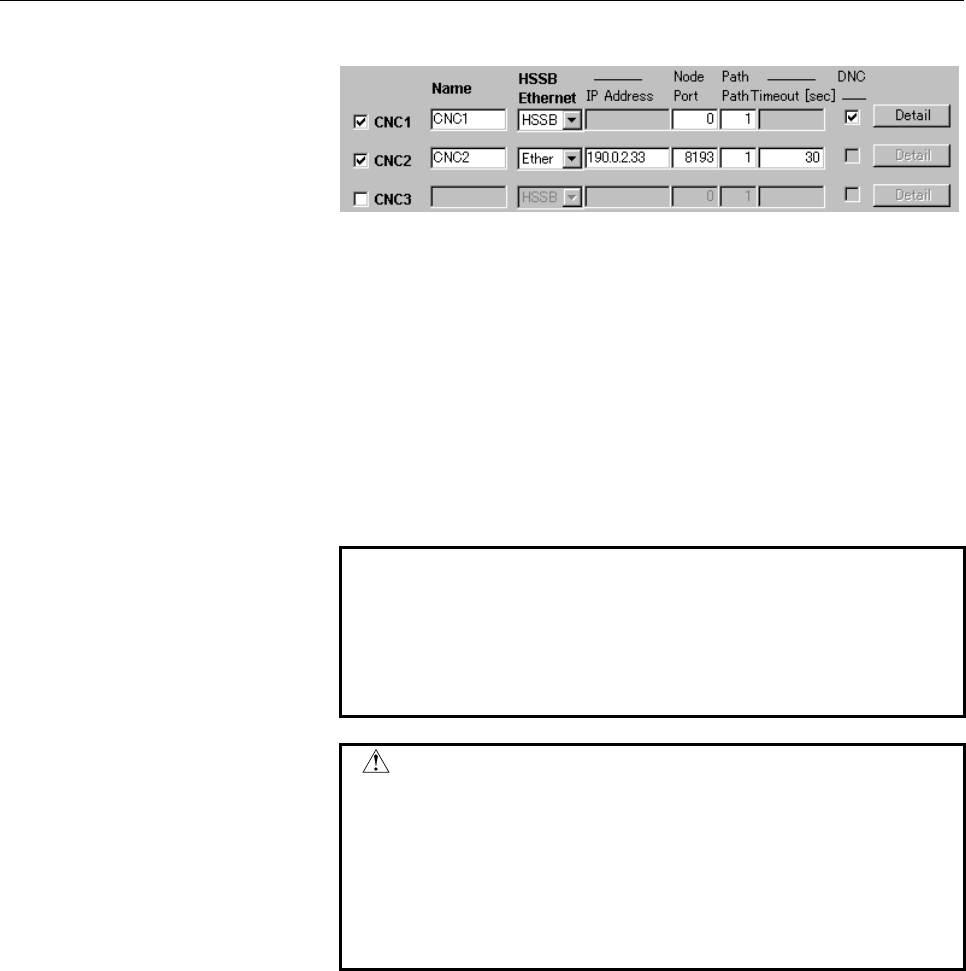

5 Select HSSB or Ethernet as the method of connection.
• When HSSB is selected
Enter the node number and path number of the CNC to be
connected.
When DNC operation is to be performed, check "DNC" and
make detail settings through the <Detail> button. For
details, see Section 3.9, "CUSTOMIZING DNC
OPERATION".
• When Ethernet is selected
Enter the IP address, port number, path number, and timeout
value of the CNC to be connected.
NOTE
For the path numbers of CNCs, a connection
needs to be made for each path. For switching
from one path to another, make a connection
setting for each path and switch the connection
destination with the status bar.
WARNING
For one CNC, make only one setting for DNC
operation.
If duplicate settings are made, the CNC can
perform an unpredictable operation. Pay special
attention when using multiple applications (DNC
operation management package and Basic
Operation Package 2) for one CNC.
