Open CNC Basic Operation Package 2 Operators manual Page 320

Operators manual
3.CUSTOMIZATION B-63924EN/01
- 300 -

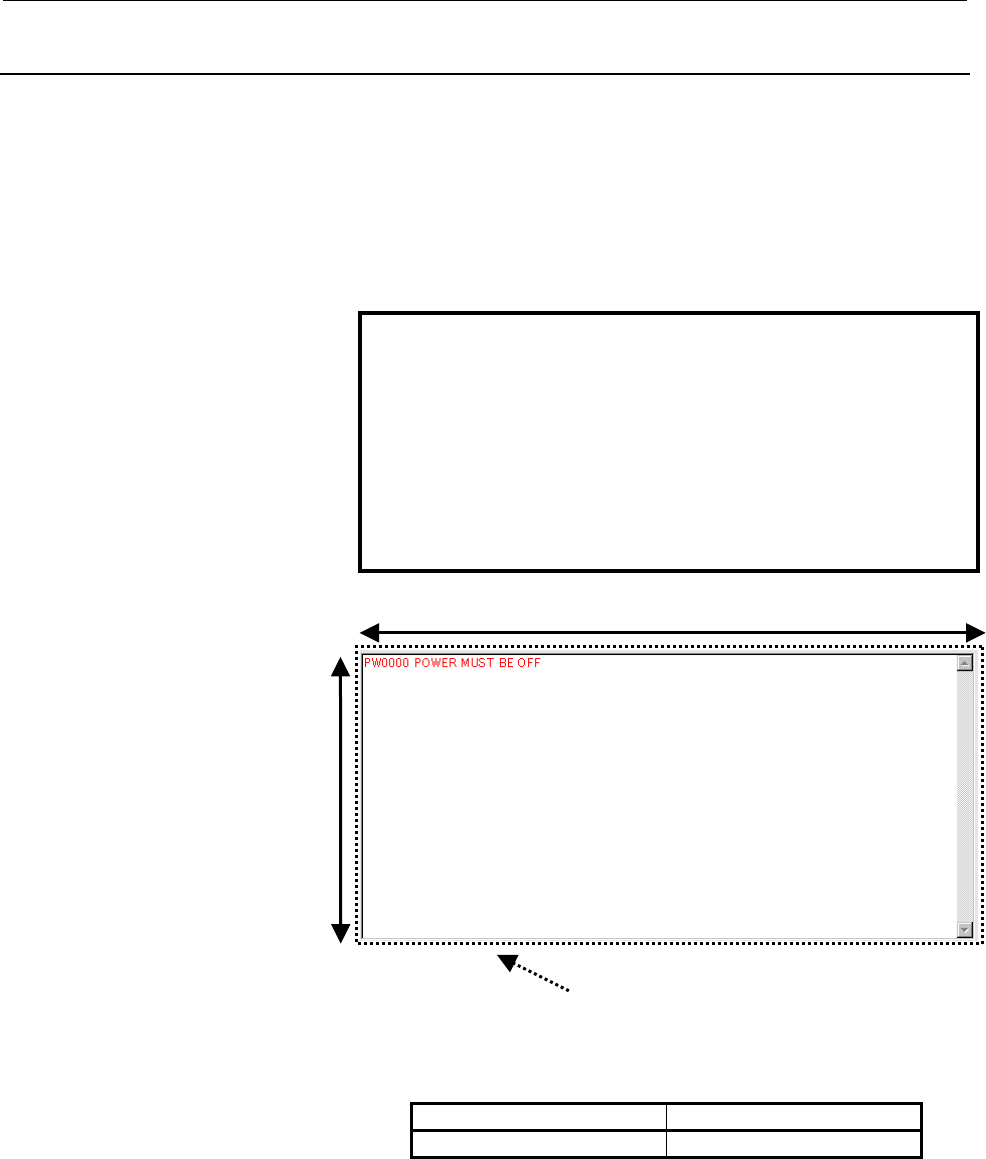

3.5.5.28 Alarm Message screen-specific definitions
The pages tag can contain only one page tag definition. The page tag
can contain only one data_series tag definition.
The data_series tag can contain only location and controlbase tag
definitions. In other words, only control position and display method
definitions are valid; any other items (such as protect attribute, s_no
tag, e_no tag, datatype tag, and data tag) in the data_series tag are
ignored.
• forecolor in the font tag in the controlbase tag
forecolor type index attribute number
Basic font color 0
<data_series>
<location>
<left>10</left>
<top>45</top>
</location>
<controlbase>
: Omitted (otherwise, control information is
described)
</controlbase>
</data_series>
Display based on one data_series tag
Width defined in the size tag in the controlbase tag
Height defined in the size
tag in the controlbase tag
