2.5.4.1 Setting parameters for input/output
Parameters for input/output of various types of data can be set.
Procedure
1 If the [Data I/O] screen is currently not displayed, display the
[Data I/O] screen as described in Subsection 2.5.4,
"Inputting/Outputting Data".
2 Press the operation key

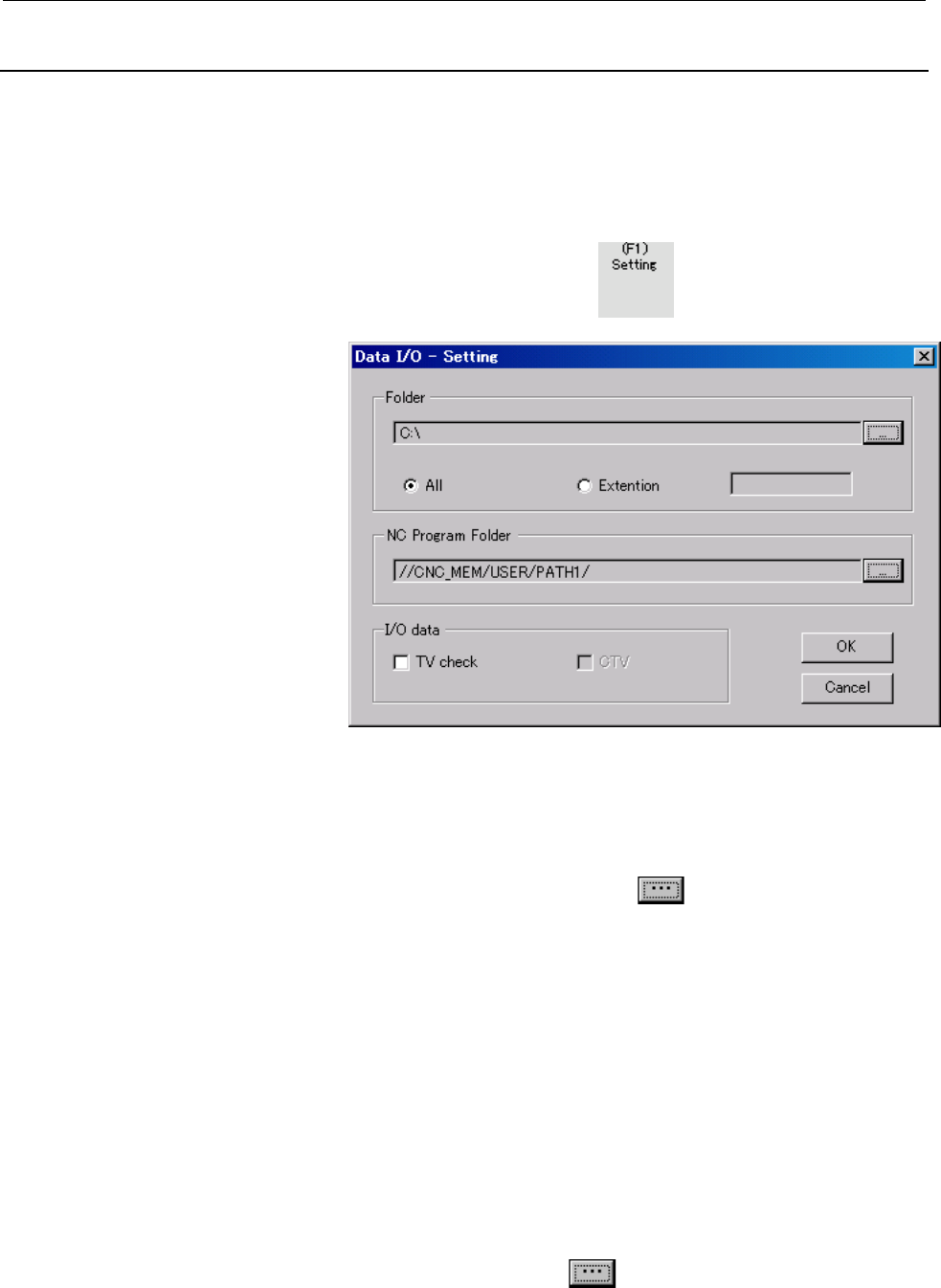

to display the [Data I/O -
Setting] screen.
3 Set the following data:
• Folder
- Path
Set the path where a data file used for input/output is
placed. When changing the path, select a desired
path by clicking the
button.
- Type of file
When "Extension" is selected, a file extension can be
set in the text box.
When an extension is set, the list of data files displays
only those files that have the set extension.
If no extension is specified for the name of a file to be
output according to Subsection 2.5.4.4, "Outputting
various types of data", an extension set here is
automatically assigned.
• NC Program Folder
- CNC folder
Set a folder on the CNC side used for input/output.
When changing the folder, select a desired folder by
clicking the
button.
