Open CNC Basic Operation Package 2 Operators manual Page 284

Operators manual
3.CUSTOMIZATION B-63924EN/01
- 264 -

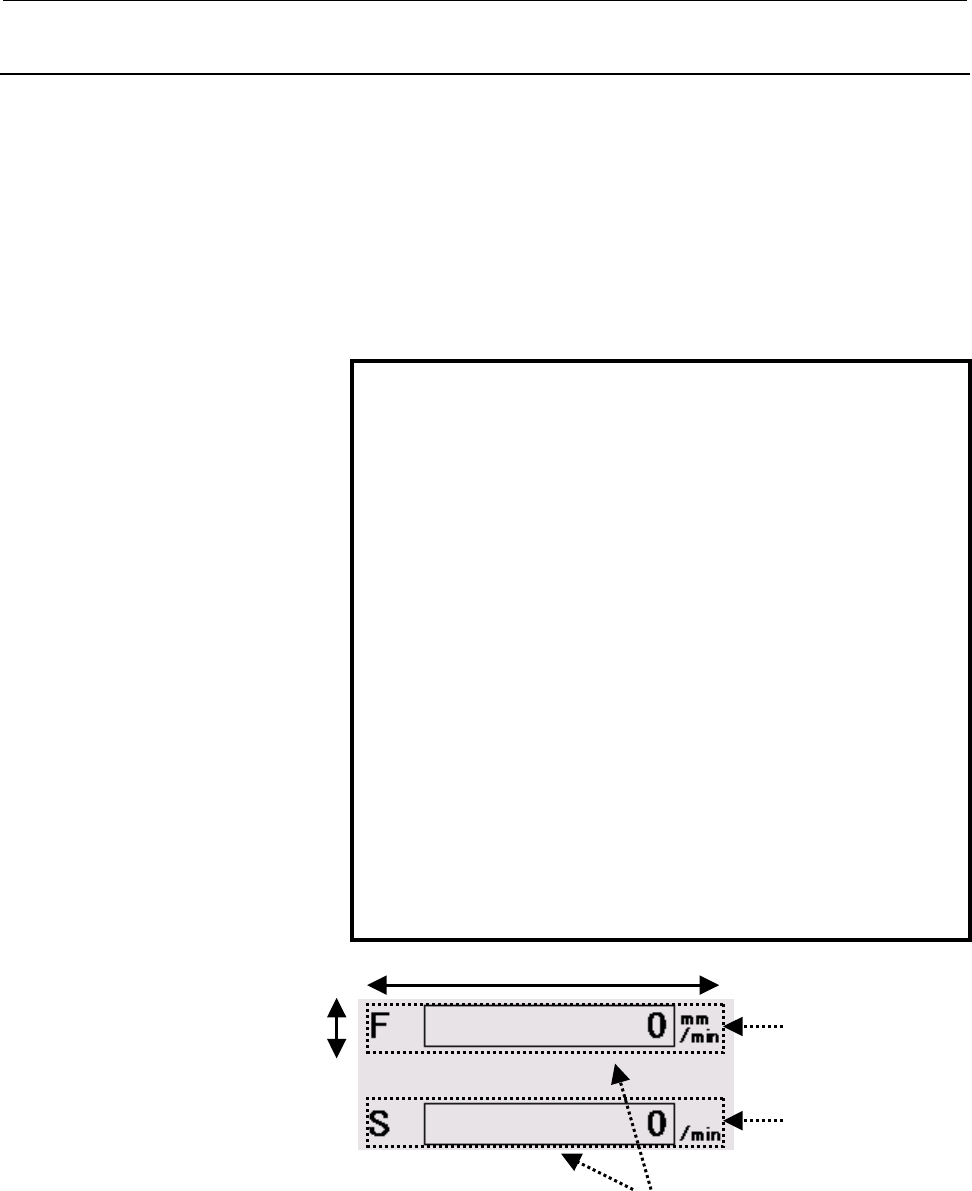

3.5.5.3 Actual Speed screen-specific definitions
The pages tag can contain only one page tag definition. The page tag
can contain up to two data_series tag definitions.
The datatype tag in the data_series tag must contain the F (feedrate) or
S (spindle rotation speed) definition according to the type of data to be
displayed.
On top of that, the data_series tag can contain only location and
controlbase tag definitions; any other items (such as protect attribute,
s_no tag, e_no tag, and data tag) in the data_series tag are ignored.
<data_series>
<datatype>F</datatype>
<location>
<left>5</left>
<top>45</top>
</location>
<controlbase>
： Omitted (otherwise, control information is
described)
</controlbase>
</data_series>
<data_series>
<datatype>S</datatype>
<location>
<left>5</left>
<top>110</top>
</location>
<controlbase>
： Omitted (otherwise, control information is
described)
</controlbase>
</data_series>
F specified in
datatype
S specified in
datatype
Display based on one data_series tag
Width defined in the size tag in the controlbase tag
Height defined in the size
tag in the controlbase tag
