2.4.3.3 Entering an increment for tool offset data
An increment can be entered for tool offset data.
Procedure
1 If the [Tool Offset] screen is currently not displayed, display the
[Tool Offset] screen as described in Subsection 2.4.3, "Setting
Tool Offset".
2 Press the display/operation switching key
to display the
operation keys.
3 Select tool offset data to be set.

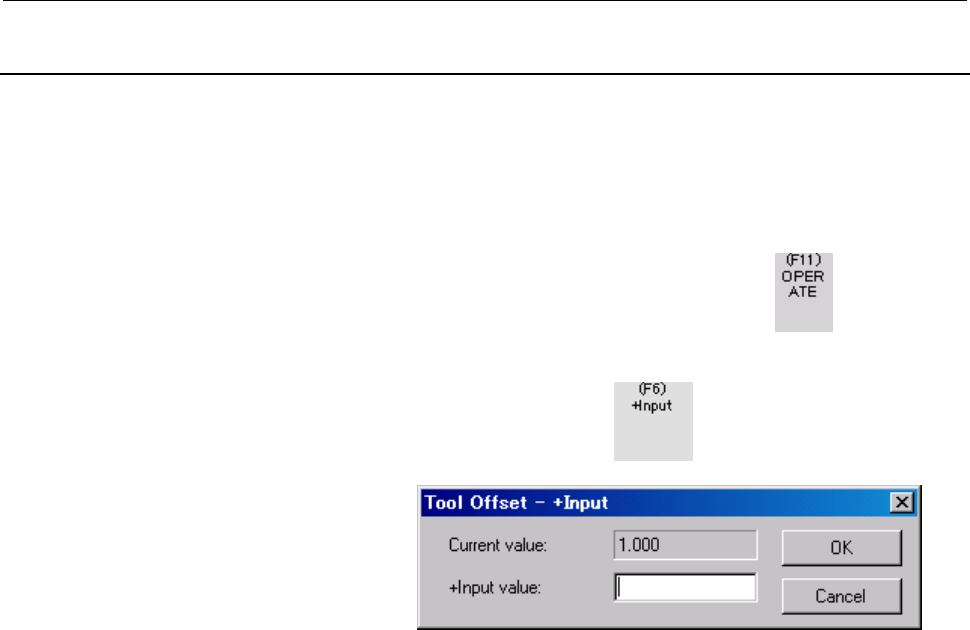

4 Press the operation key
to display the [Tool Offset -
+Input] screen.
5 Enter an incremental value (increment) then click the <OK>
button. The value obtained by adding the entered increment to
the current value is set.
