Open CNC Basic Operation Package 2 Operators manual Page 204

Operators manual
2.STANDARD OPERATION B-63924EN/01
- 184 -
2.5.11 Setting PMC Data
PMC data can be displayed and set by using two-layer screens.
The screen of the first layer is a "table control data" screen used to
divide PMC data into groups and define the start address, the number
of data items, type, and so forth of each group.
This screen can be displayed by pressing the [SYSTEM] function key
and [PMC Data] submenu key.
Each line on the screen is referred to as a "group table", and a unique
number is assigned to each group table for identification in the
leftmost "No." column.
The screen of the second layer is a "data table" screen used to display
and set the value of each PMC data item.
For details of this screen, see Subsection 2.5.11.6, "Displaying a data
table of PMC data".

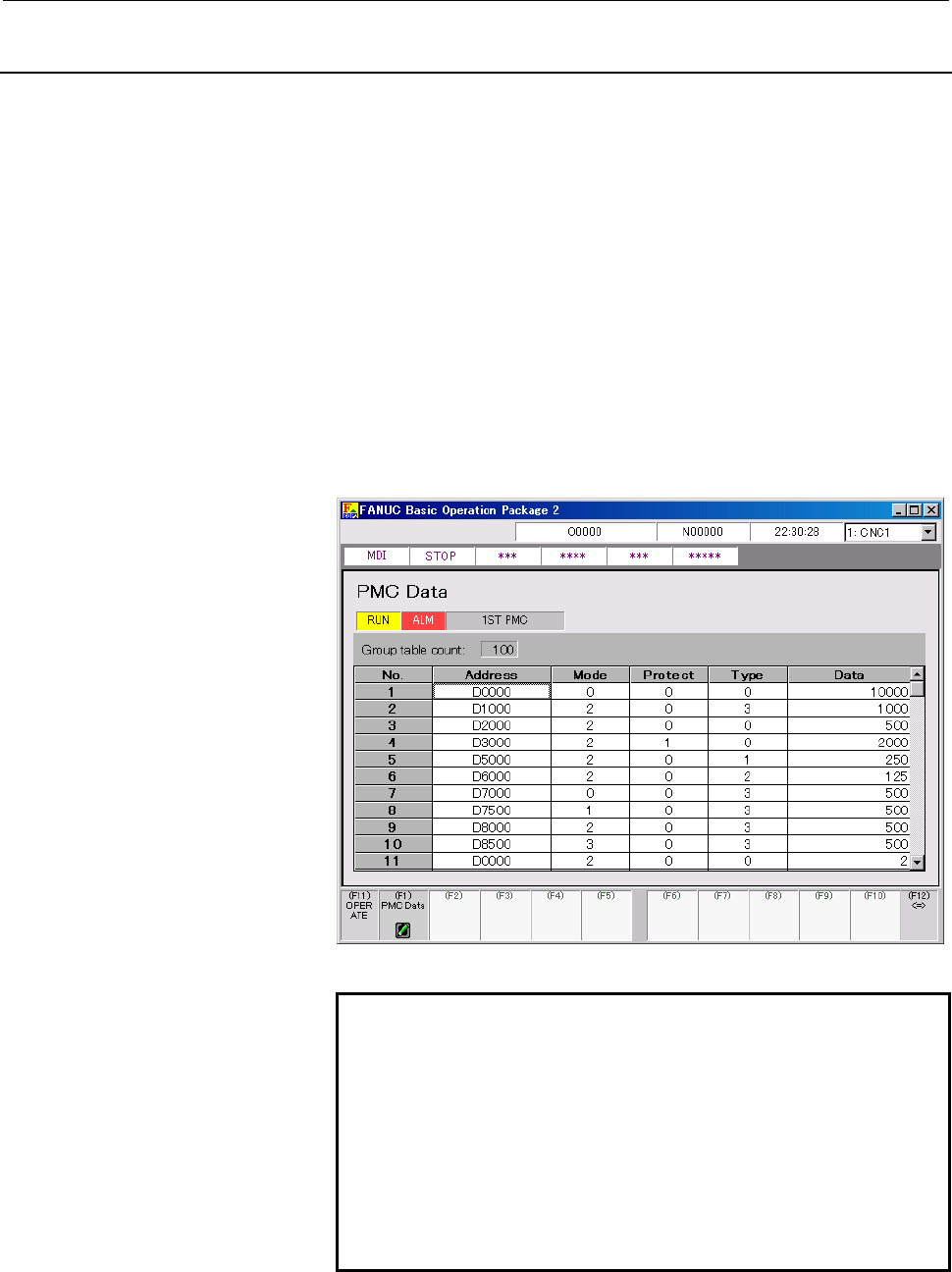

↑ Table control data screen
NOTE
1 If table control data is protected by the programmer
protection function, no group table is displayed.
2 To edit table control table, set the following status:
• Protect key
- Released
For the release of the protect key, refer to the
relevant operator's manual of the machine tool
builder.
