2.3.3 Displaying the NC Program Directory

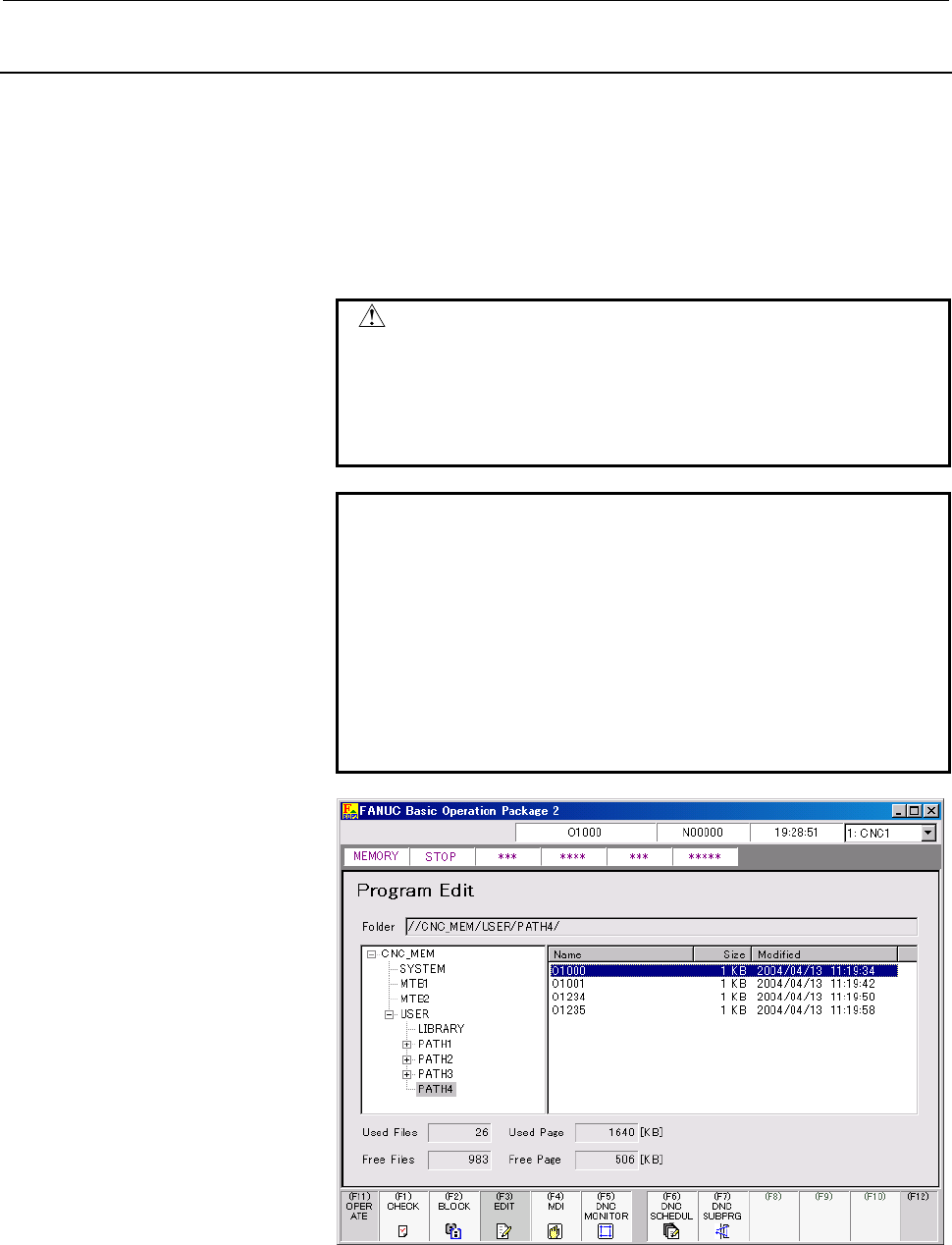

The directory of NC programs on the CNC memory is displayed.
Memory use status is displayed at the same time.
This screen can be displayed by pressing the [PROGRAM] function
key and [EDIT] submenu key.
This screen allows you to copy or delete an NC program, modify
comments, select a program to be executed, and change the display
format.
WARNING
Before starting the machine to machine a
workpiece after editing an NC program, be sure to
check that the command values, compensation
values, current position, and external signal
settings of the NC program are correct.
NOTE
To perform NC program editing, set the following
status:
• PW alarm 000 (TURN OFF POWER) not
issued
• Protect key
- Released
For the release of the protect key, refer to the
relevant operator's manual of the machine tool
builder.
